Braun 32899 Rev A manual Seat Removal and Installation 7KLUG5RZ3RZHU6HDW5HPRYDO

Page 44

SEAT REMOVAL AND INSTALLATION

7KLUG5RZ3RZHU6HDW5HPRYDO

1. Fold the seat back down (push FOLDING/RETURNING switch).

2.Lift latch handle at rear of seat base to disengage rear seat

DWWDFKPHQWVIURPÁRRUVWULNHUV

See Figures A and B.

3.Lift rear of seat. See Figure B.

4.Caution: &DUHIXOO\ disconnect

VHDWZLULQJKDUQHVVIURPÁRRU harness (located under seat).

5.Pull seat base back to disengage

IURQWVHDWDWWDFKPHQWVIURPÁRRU strikers. Remove seat. See Figure C

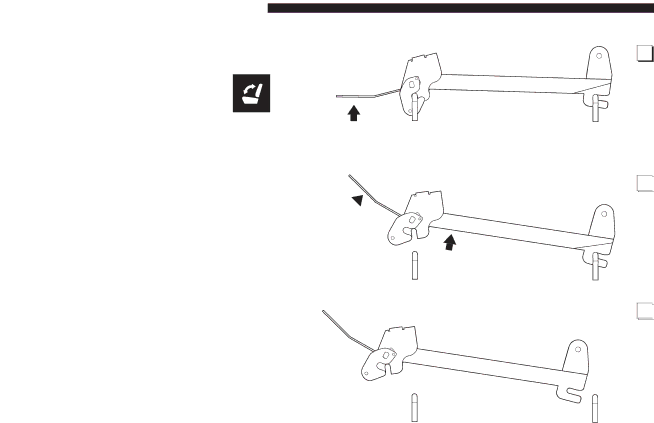

Lift latch handle. 6HDWLQ/RFNHG3RVLWLRQ

Lift latch

handle.

Lift seat.

Remove seat.

Disengage front strikers.

A

B

C
