Kenwood TH-F7E, TH-F6A instruction manual Selective Call DCS Code ID Scan

Page 35

8SELECTIVE CALL DCS CODE ID SCAN

This function scans through all DCS codes to identify the incoming DCS code on the received signal. You may find this useful when you cannot recall the DCS code that the other persons in your group are using.

1While in DCS mode, press [F], [TONE] (1 s) to start the DCS Code ID Scan function.

To reverse the scan direction, turn the Tuning control or press []/ [].

To quit the function, press [] or [PTT].

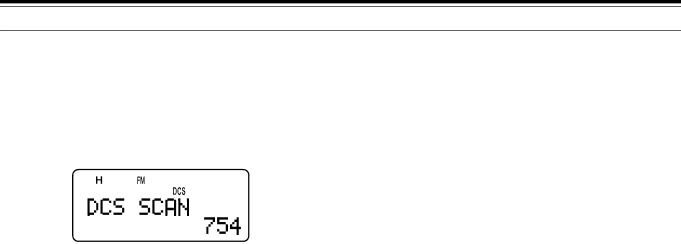

When a DCS code is identified, the identified code appears and blinks.

2Press [] or [MNU] to program the identified frequency in place of the current DCS code. Otherwise, press [] if you do not want to program the identified code.

Turn the Tuning control or press []/ [] while the identified DCS code is blinking to resume scanning.

Note:

Received signals are monitored through the speaker while scanning is in progress.

DCS Code ID Scan does not scan the code if a signal is not detected.

If the DCS function is activated for both the A and B-band, the scan speed may be slower.

30
