UTILIZING THE B-BAND

ABOUT THE B-BAND

Usually you can communicate with other amateur radio stations using A-band frequencies for receiving and transmitting. This transceiver also features another receiver in addition to the A-band transceiver. The frequency for the B-band appears on the bottom part of the display. Although the A-band transceiver covers only the 2 m/ 1.25 m (TH-F6A only)/ 70 cm amateur radio bands in FM mode, the B-band receiver can receive signals from 100 kHz to

470 MHz in SSB, CW, FM, or AM mode, and from 470 MHz to 1.3 GHz in FM or AM mode.

In this way, you can monitor 2 different frequencies at the same time. For example, you can listen to a local FM broadcasting station on the B-band while you are monitoring your club channel on the A-band.

If one of the A-band amateur radio bands is selected for the B-band receiver in FM mode, you can also transmit on the B-band frequency.

B-BAND FREQUENCY

Since the B-band frequency coverage is so wide, the default frequency band, mode, and frequency step size are preprogrammed as shown below.

1Press [A/B] to select B-band.

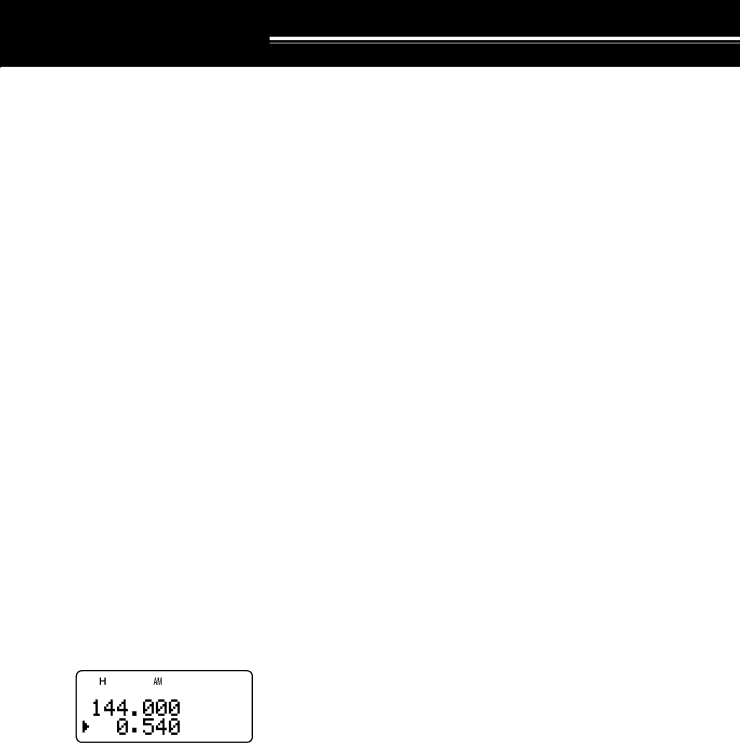

The “s” icon moves, indicating which band is currently selected for operation.

2Press [BAND] until the desired frequency band appears.

Each time you press [BAND], the frequency band cycles from the last band you selected to the upper band frequency. When it reaches the 23 cm band, it returns to the AM band.

You can also press []/ [] to select your desired band in VFO mode {page 7}.

3Turn the Tuning control or press []/ [] to tune to a desired frequency.

Note: You can also select one of the amateur radio bands to transmit on the B-band frequency. However, you must be operating in FM mode to transmit.

B-band Frequency Coverage (TH-F6A)

Band



Frequency

Step

Mode









AM band

100 kHz ~ 520 kHz

5 kHz

AM









520 kHz ~ 1.8 MHz

10 kHz

AM















1.8

MHz ~ 3.5 MHz



AM













3.5

MHz ~ 4.0 MHz



LSB













4.0

MHz ~ 7.0 MHz



AM













7.0

MHz ~ 7.3 MHz



LSB











7.3 MHz ~ 10.1 MHz



AM











10.1 MHz ~ 10.15 MHz



CW











10.15 MHz ~ 14.0 MHz



AM









HF

14.0 MHz ~ 14.35 MHz

100 Hz

USB

14.35 MHz ~ 18.068 MHz

(FINE ON)

AM















18.068

MHz ~ 18.168 MHz



USB











18.168 MHz ~ 21.0 MHz



AM











21.0 MHz ~ 21.45 MHz



USB













21.45

MHz ~ 24.89 MHz



AM













24.89

MHz ~ 24.99 MHz



USB











24.99 MHz ~ 28.0 MHz



AM













28.0

MHz ~ 29.7 MHz



USB











6 m

29.7

MHz ~ 50.0 MHz

25 kHz

FM







50.0

MHz ~ 54.0 MHz

10 kHz













FM band

54.0 MHz ~ 108.0 MHz

100 kHz

FMW











Air band

108.0

MHz ~ 137.0 MHz

12.5 kHz

AM













137.0

MHz ~ 144.0 MHz

5 kHz













2 m

144.0

MHz ~ 148.0 MHz

5 kHz

FM













148.0

MHz ~ 174.0 MHz

5 kHz











VHF TV

174.0 MHz ~ 216.0 MHz

50 kHz

FMW













216.0

MHz ~ 220.0 MHz

12.5 kHz













1.25 m

220.0

MHz ~ 225.0 MHz

20 kHz















225.0

MHz ~ 400.0 MHz

12.5 kHz

FM











400.0

MHz ~ 420.0 MHz

12.5 kHz















70 cm

420.0

MHz ~ 450.0 MHz

25 kHz















450.0

MHz ~ 470.0 MHz

12.5 kHz











UHF TV

470.0 MHz ~ 806.0 MHz

50 kHz

FMW









23 cm

806.0 MHz ~ 1240.0 MHz

12.5 kHz

FM







1240.0

MHz ~ 1300.0 MHz

25 kHz















Note:

By default, the Fine Tuning function is activated automatically for 1.8 MHz ~ 29.7 MHz.

Cellular band is blocked due to government regulations.
