Page 30

ACCESSORIES

Accessories must be purchased separately.

Use only GENUINE GRACO PARTS AND ACCESSORIES.

WARNING

NEVER operate your equipment at a working pressure rating that is higher than the lowest rated component in your system. Lower rated components may not be able to withstand the pressure developed by the pump and may rupture, causing serious bodily injury or property damage.

The accessories in the box, below, are approved by Factory Mutual.

WARNING SIGNS

FLUID HOSE ASSEMBLIES (Nylon)

Available from Graco at no extra charge.

35 bar (500 psi) MAXIMUM WORKING PRESSURE

Must be ordered separately.

6.35 mm (0.25 in.) ID, 3/8 npsm(fbe)

180±060

Warning Sign (English)

216±076

8 m (25 ft)

180±061

Warning Sign (French)

216±077

15 m (50 ft)

180±062

Warning Sign (German)

216±078

23 m (75 ft)

180±063

Warning Sign (Spanish)

216±079 30 m (100 ft)





GROUNDED AIR SUPPLY HOSE

216±080

46 m (150 ft)





7 bar (100 psi) MAXIMUM WORKING PRESSURE

FLUID HOSE ASSEMBLIES (Nylon)

6.35 mm (0.25 in.) ID, 1/4 npsm(fbe)

14 bar (225 psi) MAXIMUM WORKING PRESSURE

220±444

1.2 m (4 ft)

6.35 mm (0.25 in.) ID, 3/8 npsm(fbe)

218±100

5 m (15 ft)





218±101

8 m (25 ft)

215±637

8 m (25 ft)

218±102

11 m (36 ft)

215±638

15 m (50 ft)

218±103

15 m (50 ft)

215±639

75 ft (23 m)

220±119

23 m (75 ft)

215±640 100 ft 30.5 m)

220±120

30.5 m (100 ft)

215±641

150 ft (46 m)









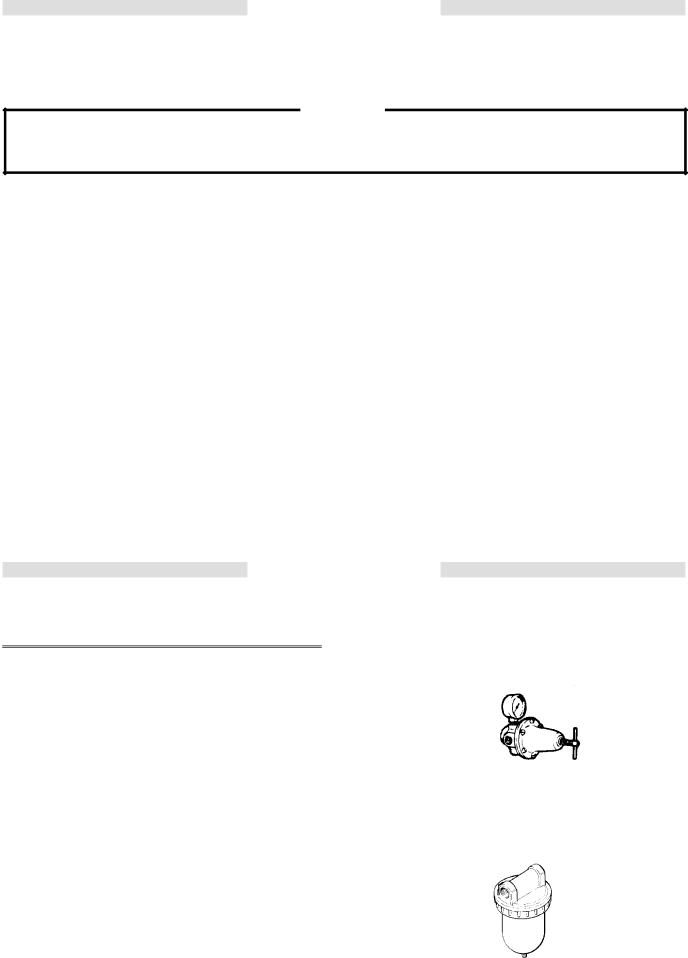

ACCESSORIES

The accessories below and on page 31 have not been tested by Factory Mutual.

AIR LINE ACCESSORIES

GROUNDED AIR SUPPLY HOSE

7 bar (100 psi) MAXIMUM WORKING PRESSURE

8 mm (0.315 in.) ID; 1/4 npsm(fbe);

Color coded gray; More flexible than black hose

223±068 1.2 m (4 ft) 223±069 5 m (15 ft) 223±070 8 m (25 ft) 223±071 11 m (36 ft) 223±072 15 m (50 ft) 223±073 23 m (75 ft)

223±074 30.5 m (100 ft)

AIR HOSE ADAPTER 185±493

For connecting two or more air supply hoses together. 1/4 npt(m) x 1/4 npsm(m) left±hand thread.

HIGH VOLUME AIR REGULATOR 206±199

0±9 bar (0±125 psi) Regulated Pressure 14 bar (200 psi) Steel Pressure Gauge 1/2 npt(f) inlet and outlet

AIR FILTER & MOISTURE SEPARATOR 106±148

17.5bar (250 psi) MAXIMUM WORKING PRESSURE For cleaning and drying air in air spray system.

20 micron element, 5 oz. bowl capacity, 3/8 npt(f) inlet and outlet

3-WAY AIR VALVE 722±502
