Connecting to a network

Network Settings (Wired)

Connecting to a Wired Network

There are three ways to attach your product to your LAN using cable.

•• You can attach your product to your LAN by connecting the LAN port on the back of your product to an external modem using a LAN cable.

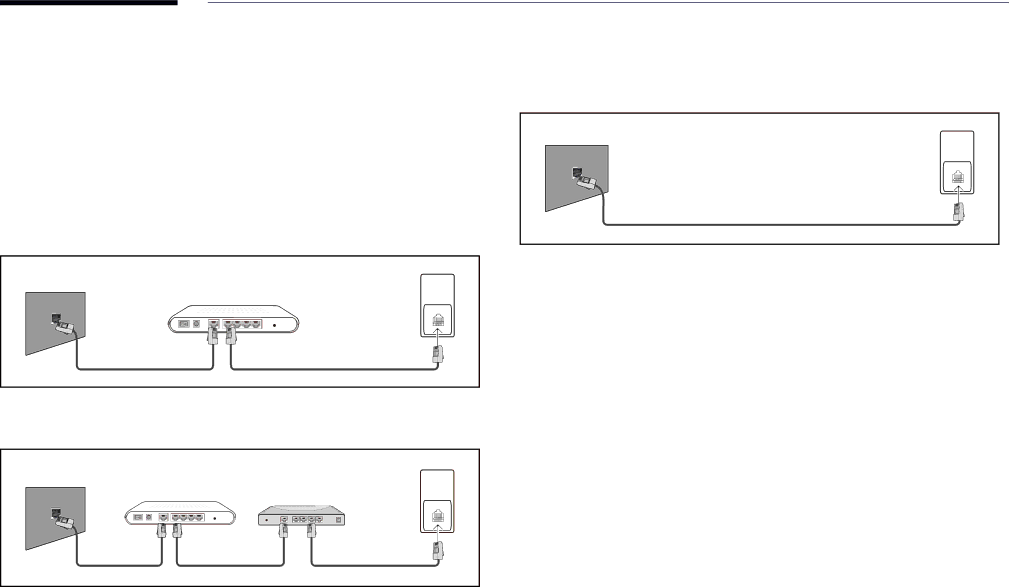

See the diagram below.



External Modem

LAN

The Modem Port on the Wall



(ADSL / VDSL)

RJ45



Modem Cable



LAN Cable

•• You can attach your product to your LAN by connecting the LAN port on the back of your product to an IP Sharer which is connected to an external modem. Use LAN cable for the connection. See the diagram below.

The Modem Port on the Wall

External Modem

IP Sharer

LAN





(ADSL / VDSL)

(having DHCP server)

RJ45





Modem Cable

LAN Cable



LAN Cable

•• Depending on how your network is configured, you may be able to attach your product to your LAN by connecting the LAN port on the back of your product directly to a network wall outlet using a LAN cable.

See the diagram below. Note that the wall outlet is attached to a modem or router elsewhere in your house.

LAN

The Modem Port on the Wall

RJ45

LAN Cable

If you have a Dynamic Network, you should use an ADSL modem or router that supports the Dynamic Host Configuration Protocol (DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway, and DNS values your product needs to access the Internet so you do not have to enter them manually. Most home networks are Dynamic Networks.

Some networks require a Static IP address. If your network requires a Static IP address, you must enter the IP address, subnet mask, gateway, and DNS values manually on your product Cable Setup Screen when you set up the network connection. To get the IP address, subnet mask, gateway, and DNS values, contact your Internet Service Provider (ISP).

If you have a Windows computer, you can also get these values through your computer.

"" You can use ADSL modems that support DHCP if your network requires a Static IP address. "" ADSL modems that support DHCP also let you use Static IP addresses.
