Hearth and Home Technologies SL-350TRSI-AUE manual Continue Adding Flue Components

Page 19

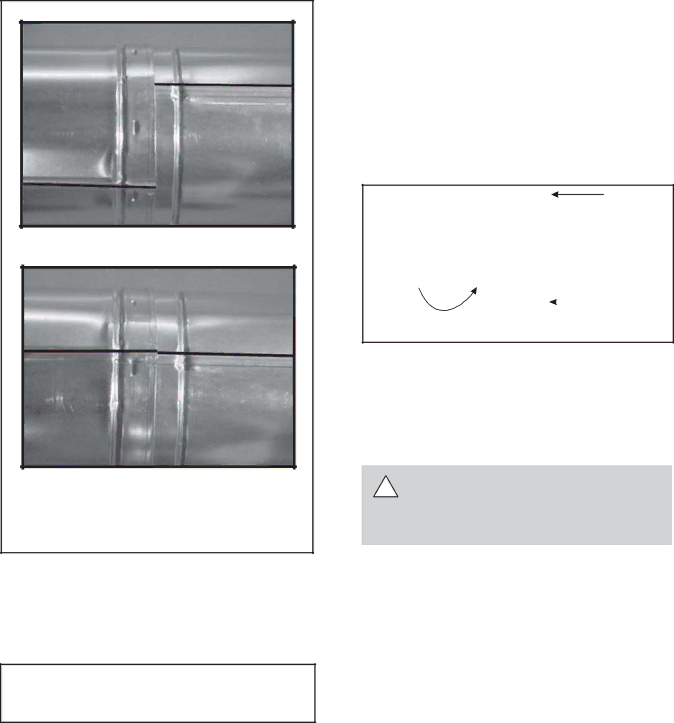

CORRECT

INCORRECT

Note: Make sure that the seams are not aligned to prevent unintentional disconnection.

Figure 22. Seams

NOTE: Make sure that seams are NOT aligned to prevent unintentional disconnection.

For elbows that are changing the flue direction, two screws minimum should be put in the outer flue at the joint to prevent the elbow from rotating.

PROCEED TO STEP 3

(Install Support Brackets)

B. On the TOP of the heater

1.Attaching the First Flue Component to the Start- ing Collars:

To attach the first flue component to the starting collars on the top of the heater:

•Lock the flue components into place by sliding the concentric pipe sections with four (4) equally spaced interior beads into the heater collar or previously in- stalled component end with four (4) equally spaced indented sections.

Figure 23. Adding Venting Components

•When the internal beads of each outer pipe line up, rotate the pipe section clockwise about one quarter (1/4) turn. The flue pipe is now locked together.

•Slide the ceramic fiber pad over the first flue section and place it flush to the fireplace. Continue to add vent components.

!WARNING: ENSURE THAT THE HEATER GASKET SUPPLIED WITH THE HEATER

SEALS BETWEEN THE FIRST FLUE COMPO- NENT AND THE OUTER HEATER WRAP.

2. Continue Adding Flue Components

To continue adding flue components in accordance with the pre-planned flue system configuration:

•Ensure that each succeeding flue component is se- curely fitted and locked into the preceding compo- nent in the flue system.

For elbows that are changing the flue direction, two screws minimum should be put in the outer flue at the joint to prevent the elbow from rotating.

3. Install Support Brackets

For Horizontal Runs - The flue system must be supported every five (5) feet (1.5m) of horizontal run by a horizontal pipe support.

To install support brackets for horizontal runs:

•Place the pipe supports around the flue pipe.

•Nail the pipe supports to the framing members.

Heat & Glo • SL-350TRSI-AUE • 2089-902 Rev. B • 6/06

19
