Introductionduction,cont’d

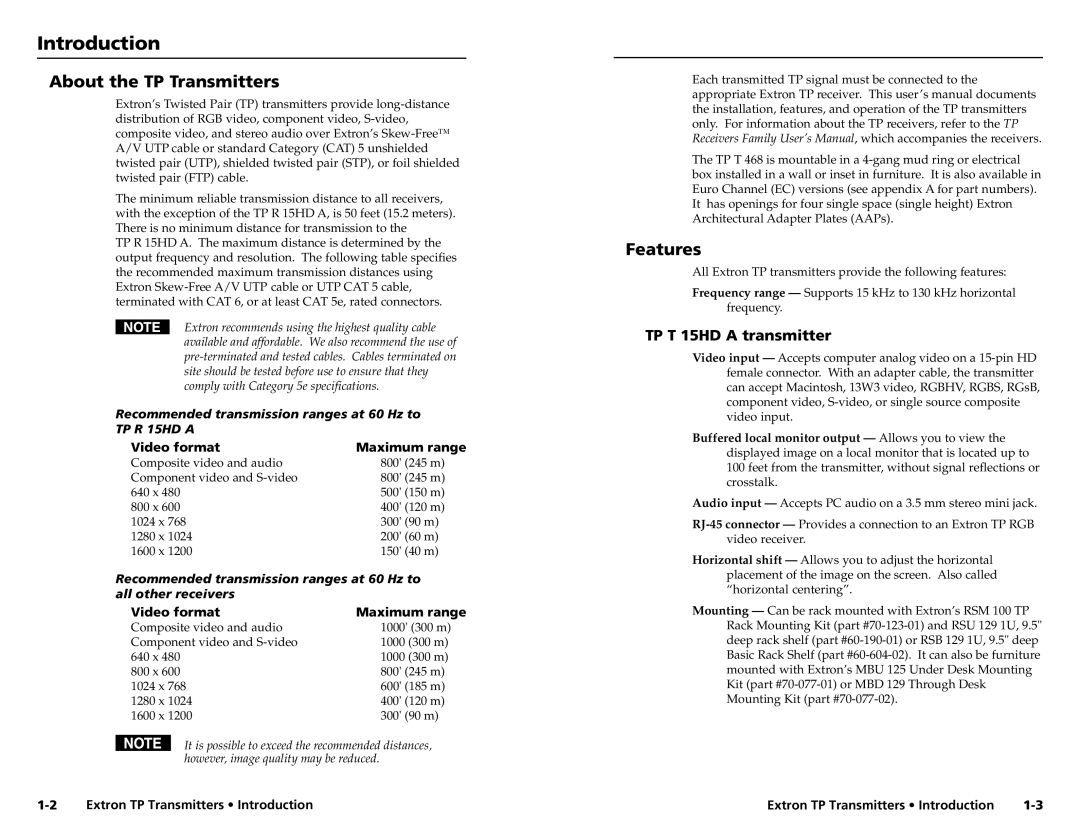

About the TP Transmitters

Extron’s Twisted Pair (TP) transmitters provide long-distance distribution of RGB video, component video, S-video, composite video, and stereo audio over Extron’s Skew-Free™ A/V UTP cable or standard Category (CAT) 5 unshielded twisted pair (UTP), shielded twisted pair (STP), or foil shielded twisted pair (FTP) cable.

The minimum reliable transmission distance to all receivers, with the exception of the TP R 15HD A, is 50 feet (15.2 meters). There is no minimum distance for transmission to the

TP R 15HD A. The maximum distance is determined by the output frequency and resolution. The following table specifies the recommended maximum transmission distances using Extron Skew-Free A/V UTP cable or UTP CAT 5 cable, terminated with CAT 6, or at least CAT 5e, rated connectors.

Extron recommends using the highest quality cable available and affordable. We also recommend the use of pre-terminated and tested cables. Cables terminated on site should be tested before use to ensure that they comply with Category 5e specifications.

Recommended transmission ranges at 60 Hz to

TP R 15HD A

Video format

Maximum range

Composite video and audio

800' (245 m)

Component video and S-video

800' (245 m)

640 x 480

500' (150 m)

800 x 600

400' (120 m)

1024 x 768

300' (90 m)

1280 x 1024

200' (60 m)

1600 x 1200

150' (40 m)

Recommended transmission ranges at 60 Hz to all other receivers

Video format

Maximum range

Composite video and audio

1000' (300 m)

Component video and S-video

1000 (300 m)

640 x 480

1000 (300 m)

800 x 600

800' (245 m)

1024 x 768

600' (185 m)

1280 x 1024

400' (120 m)

1600 x 1200

300' (90 m)

It is possible to exceed the recommended distances, however, image quality may be reduced.

Each transmitted TP signal must be connected to the appropriate Extron TP receiver. This user’s manual documents the installation, features, and operation of the TP transmitters only. For information about the TP receivers, refer to the TP Receivers Family User’s Manual, which accompanies the receivers.

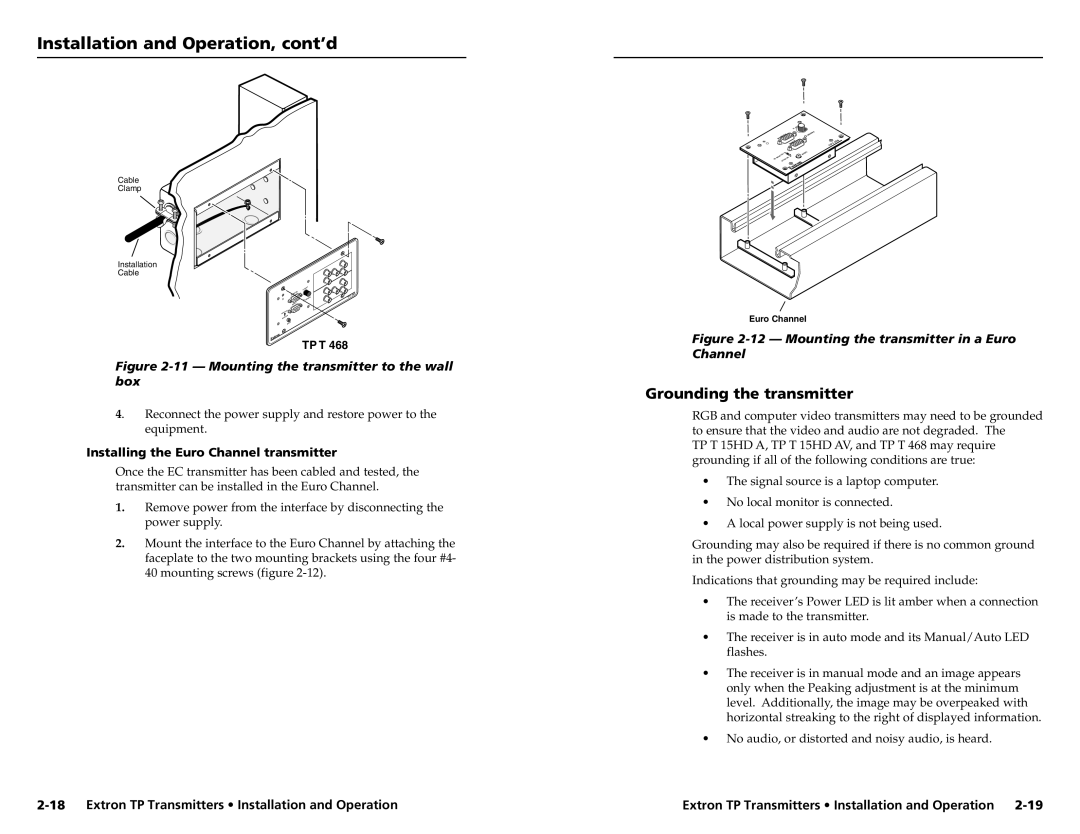

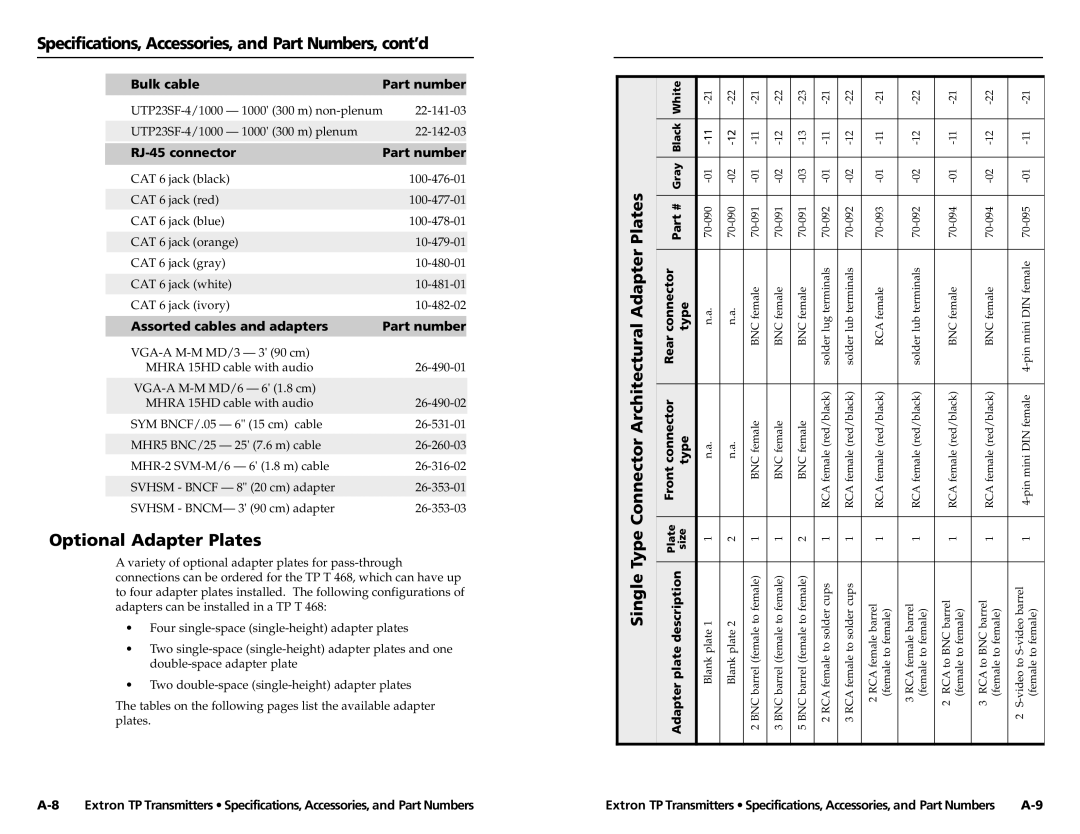

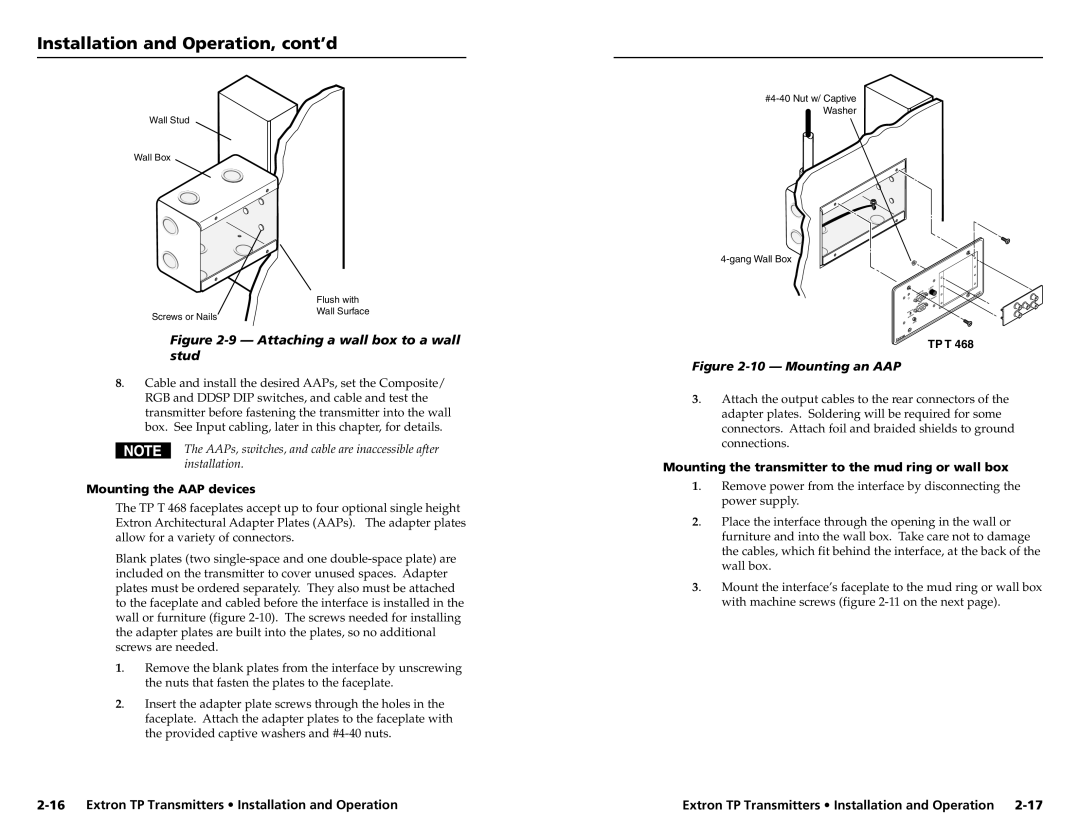

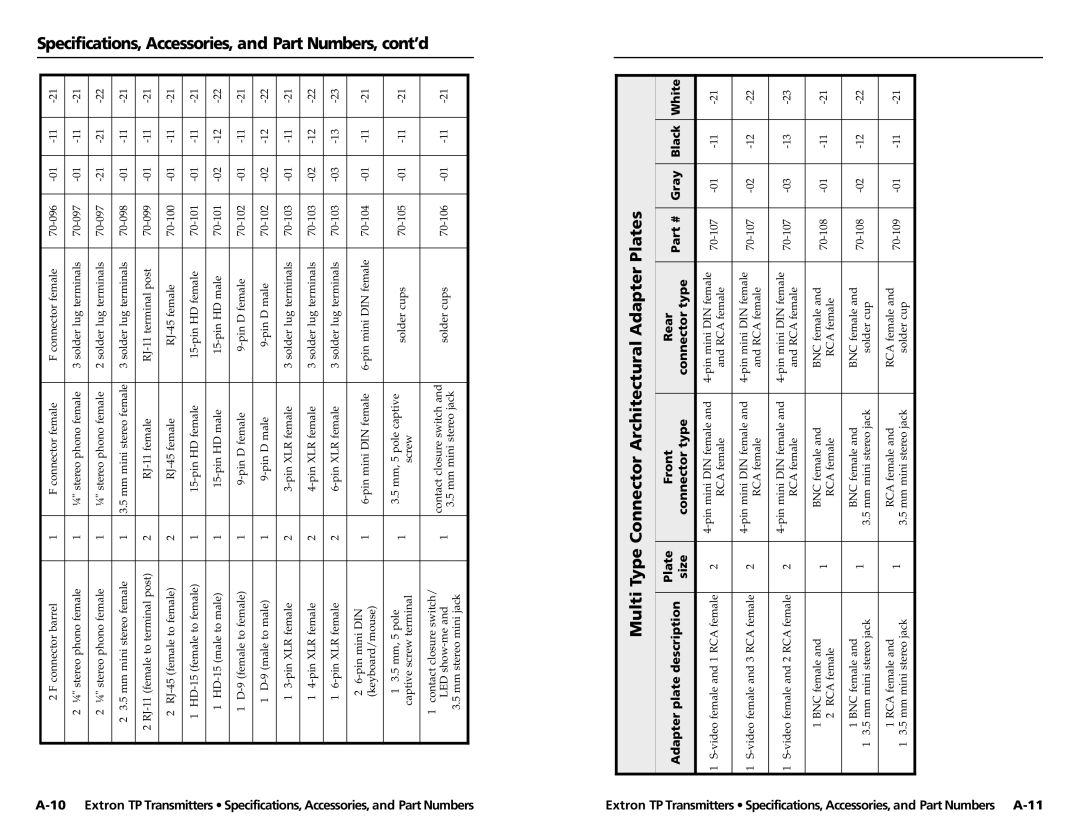

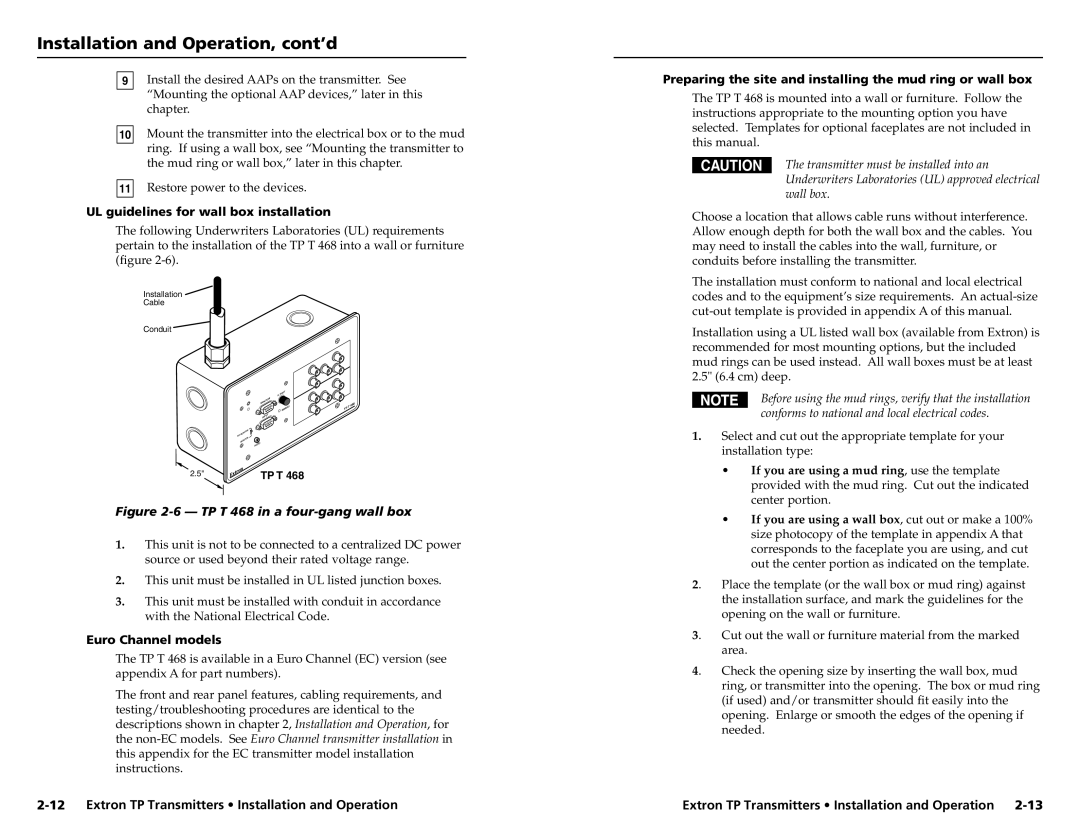

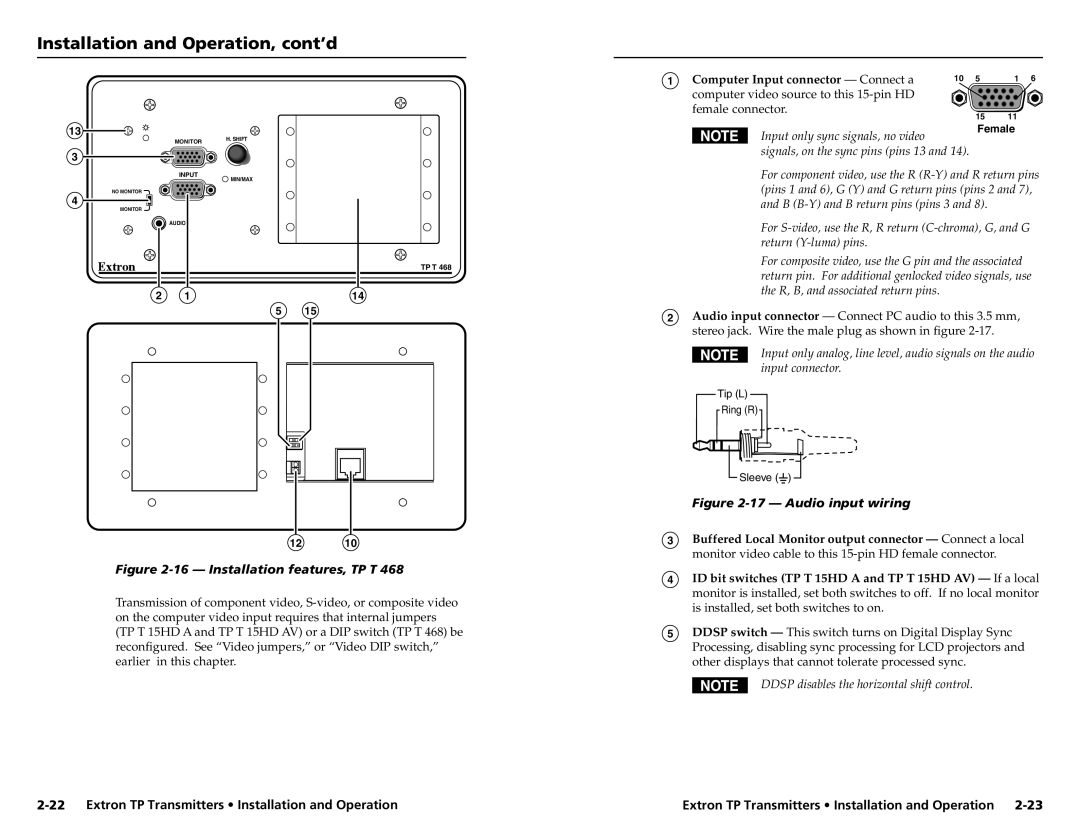

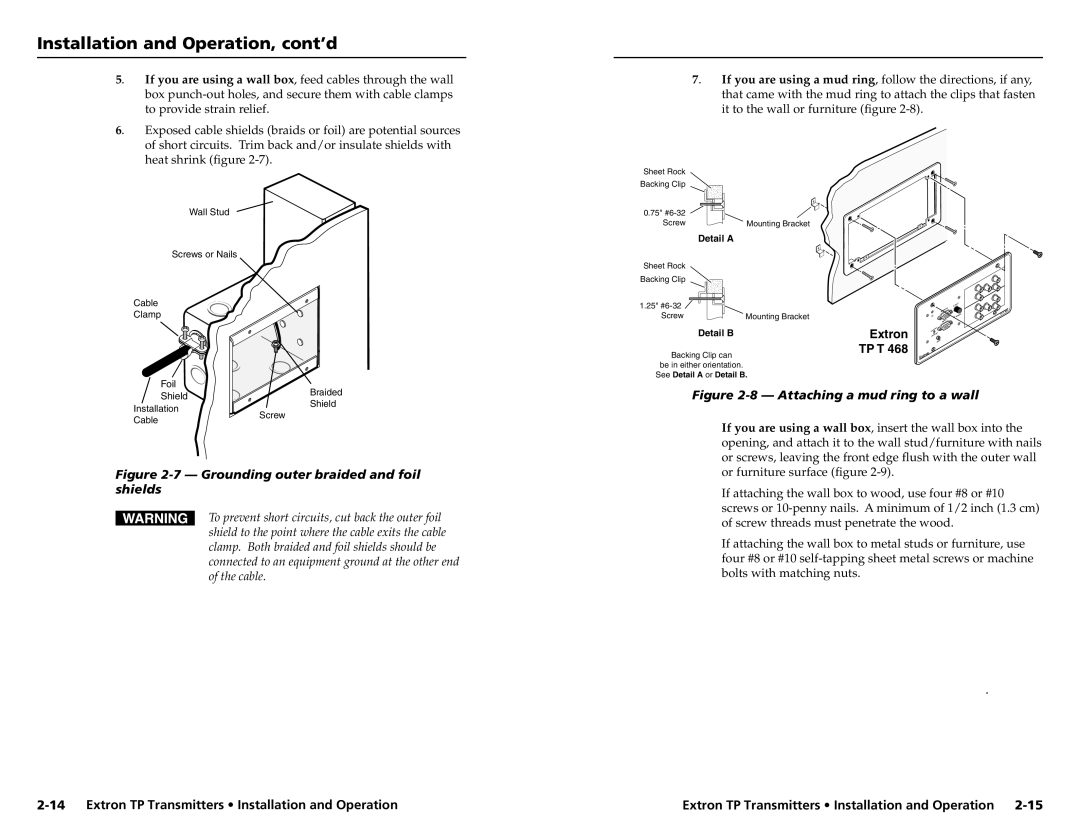

The TP T 468 is mountable in a 4-gang mud ring or electrical box installed in a wall or inset in furniture. It is also available in Euro Channel (EC) versions (see appendix A for part numbers). It has openings for four single space (single height) Extron Architectural Adapter Plates (AAPs).

Features

All Extron TP transmitters provide the following features:

Frequency range — Supports 15 kHz to 130 kHz horizontal frequency.

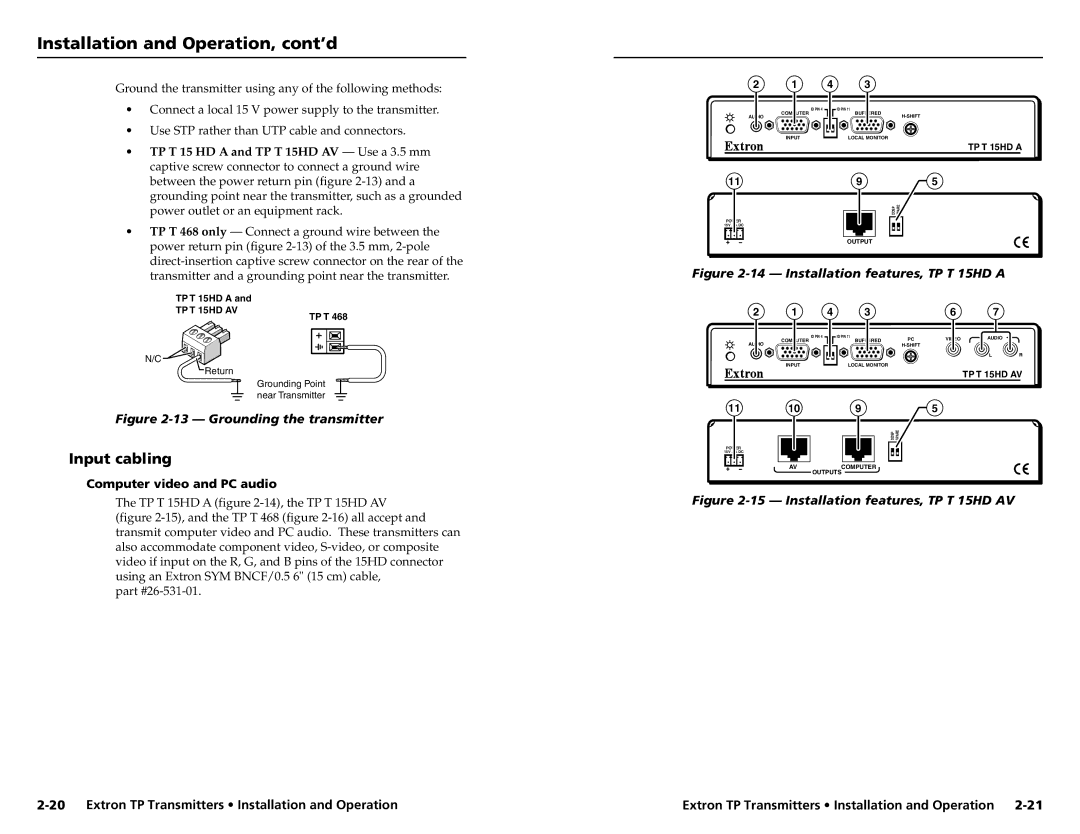

TP T 15HD A transmitter

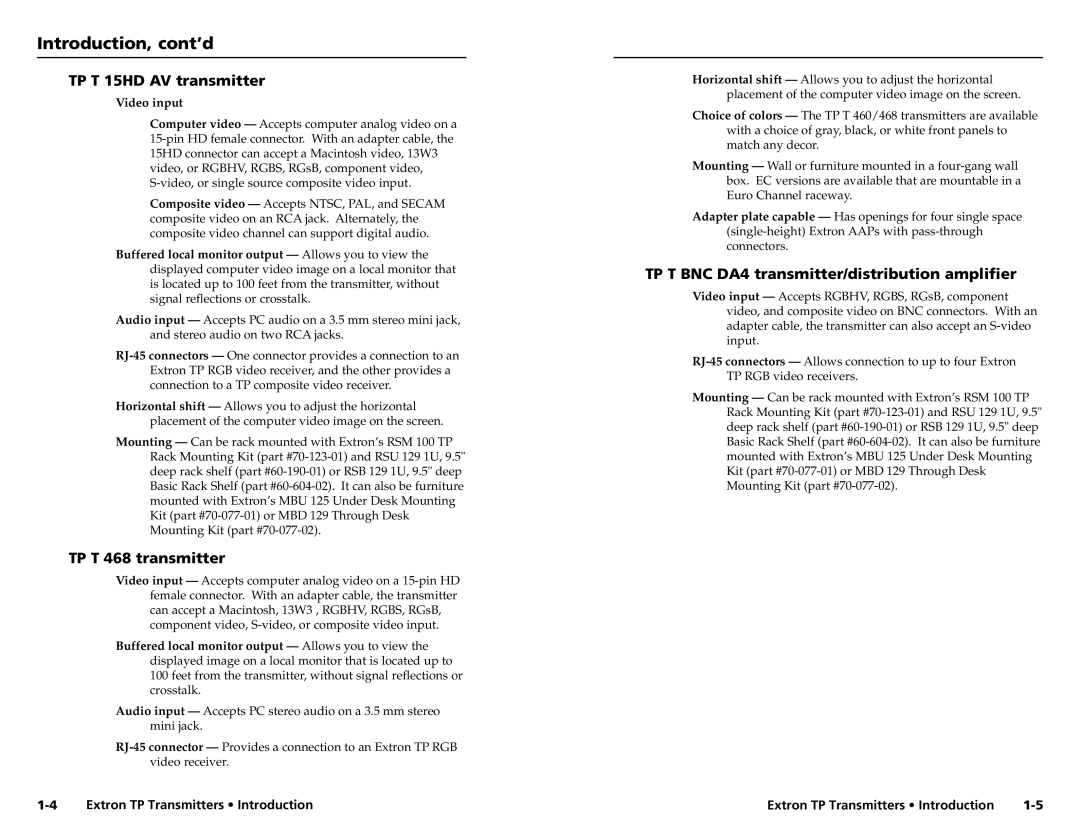

Video input — Accepts computer analog video on a 15-pin HD female connector. With an adapter cable, the transmitter can accept Macintosh, 13W3 video, RGBHV, RGBS, RGsB, component video, S-video, or single source composite video input.

Buffered local monitor output — Allows you to view the displayed image on a local monitor that is located up to 100 feet from the transmitter, without signal reflections or crosstalk.

Audio input — Accepts PC audio on a 3.5 mm stereo mini jack.

RJ-45 connector — Provides a connection to an Extron TP RGB video receiver.

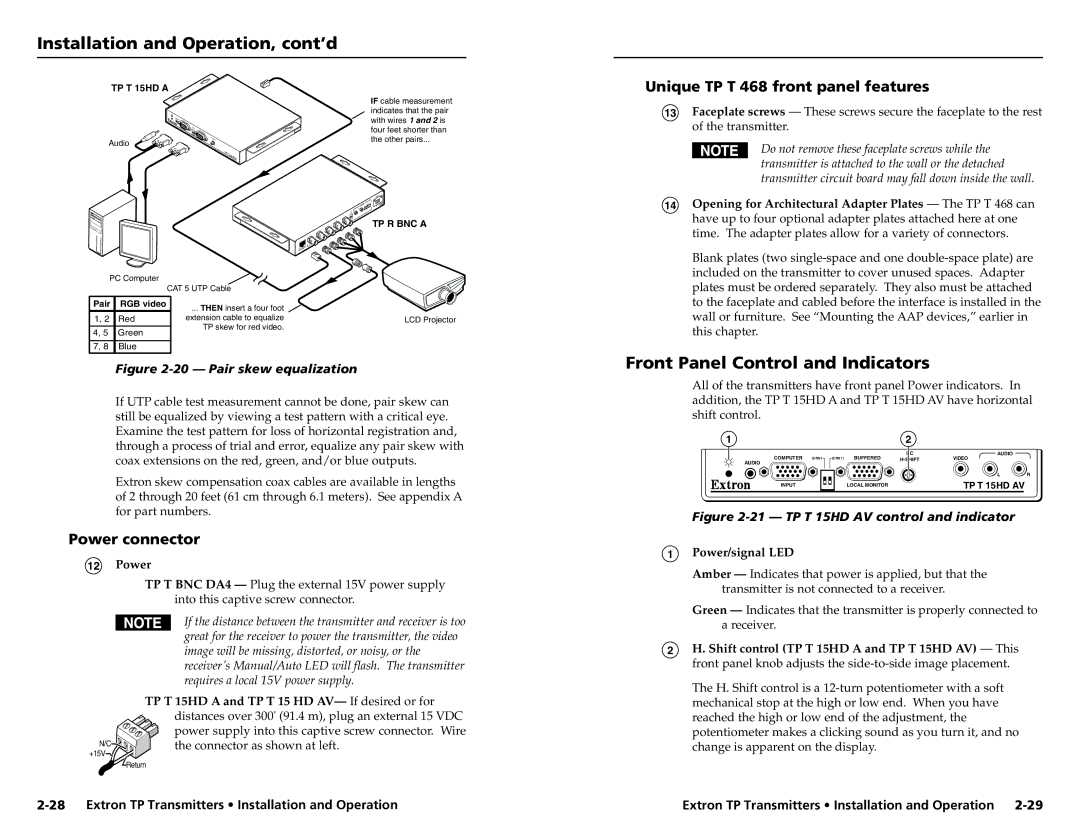

Horizontal shift — Allows you to adjust the horizontal placement of the image on the screen. Also called “horizontal centering”.

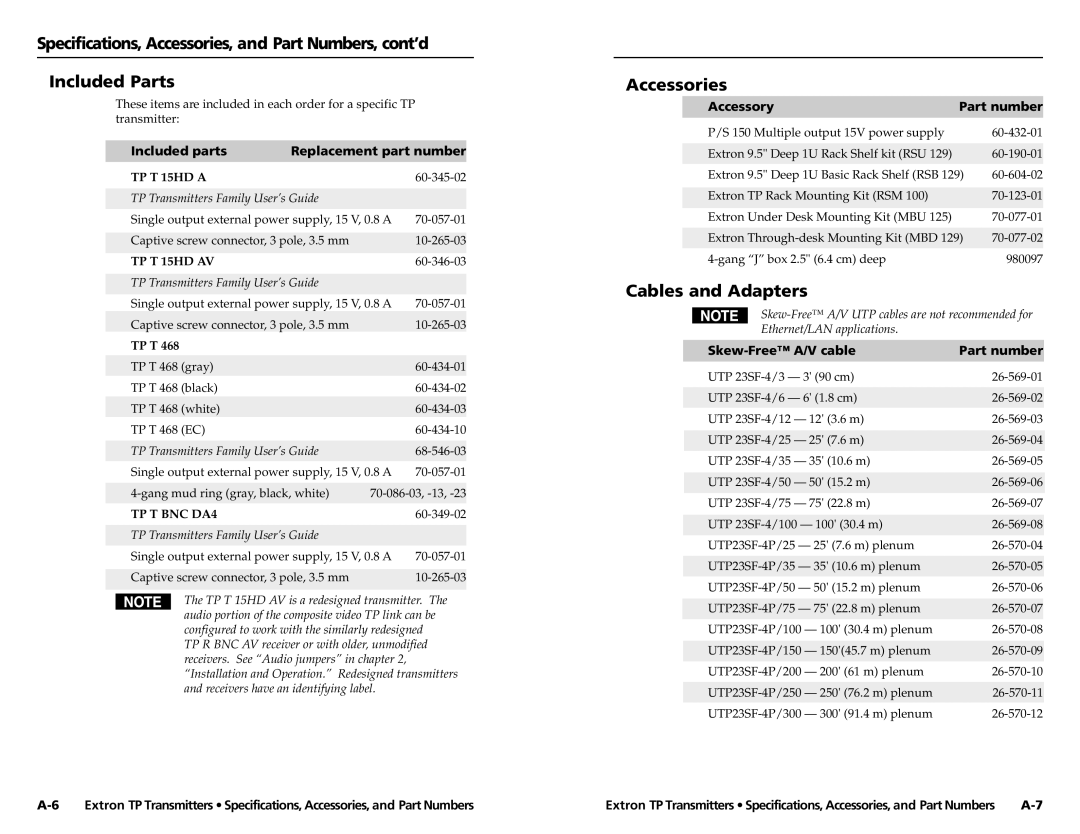

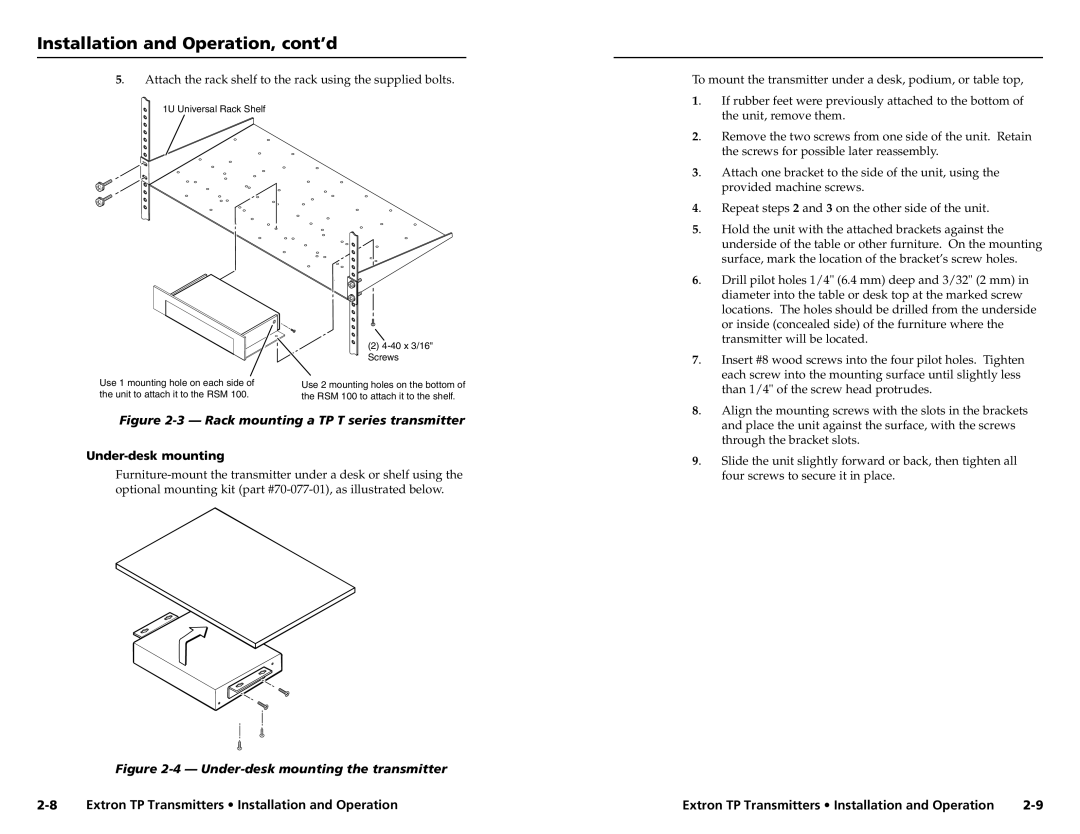

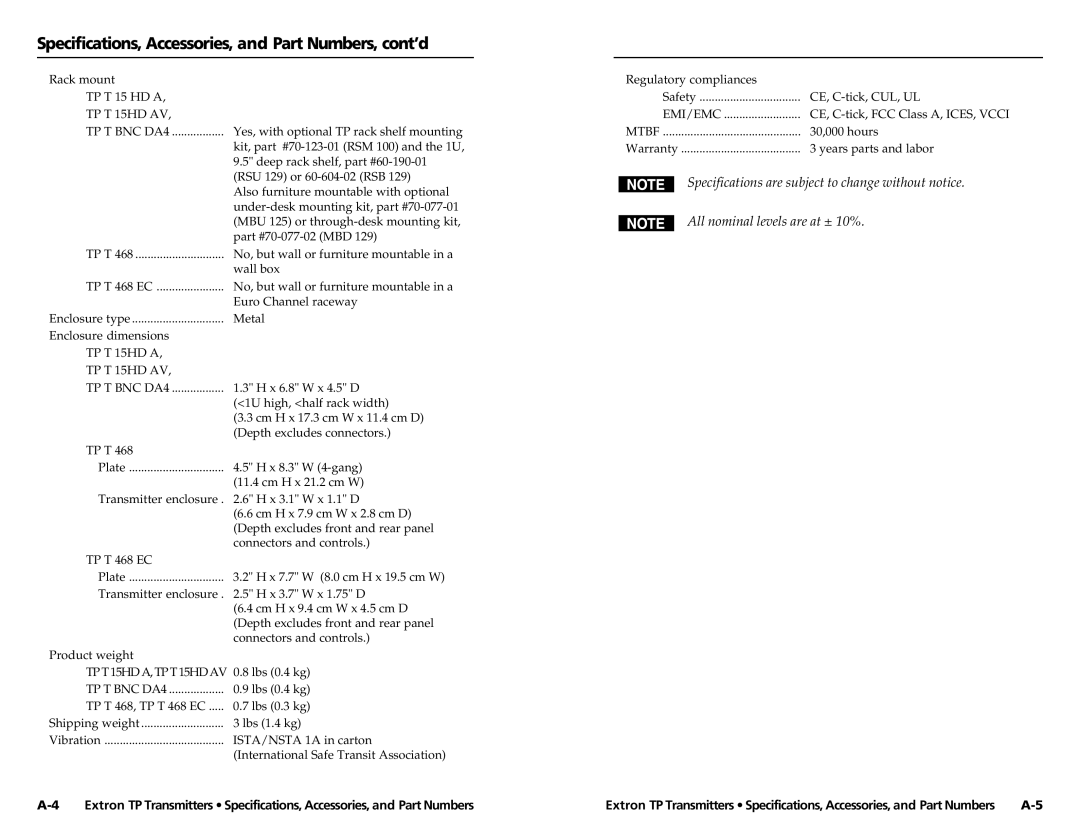

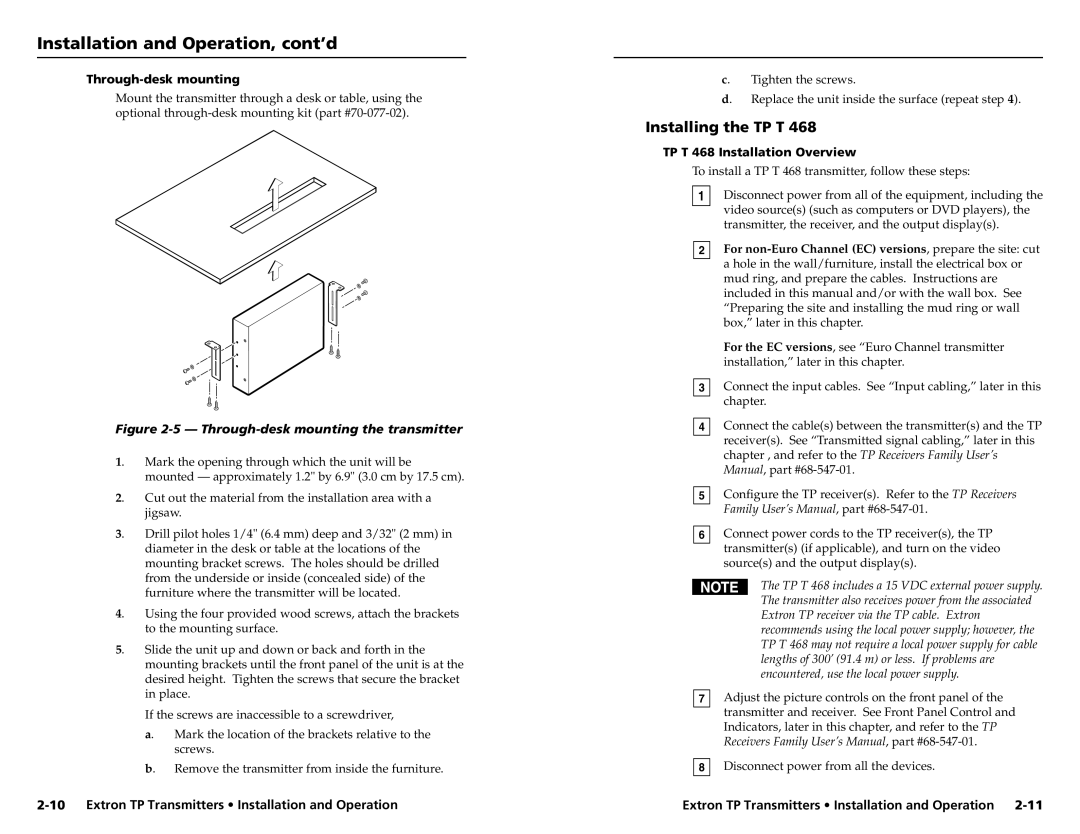

Mounting — Can be rack mounted with Extron’s RSM 100 TP Rack Mounting Kit (part #70-123-01) and RSU 129 1U, 9.5" deep rack shelf (part #60-190-01) or RSB 129 1U, 9.5" deep Basic Rack Shelf (part #60-604-02). It can also be furniture mounted with Extron’s MBU 125 Under Desk Mounting Kit (part #70-077-01) or MBD 129 Through Desk Mounting Kit (part #70-077-02).
