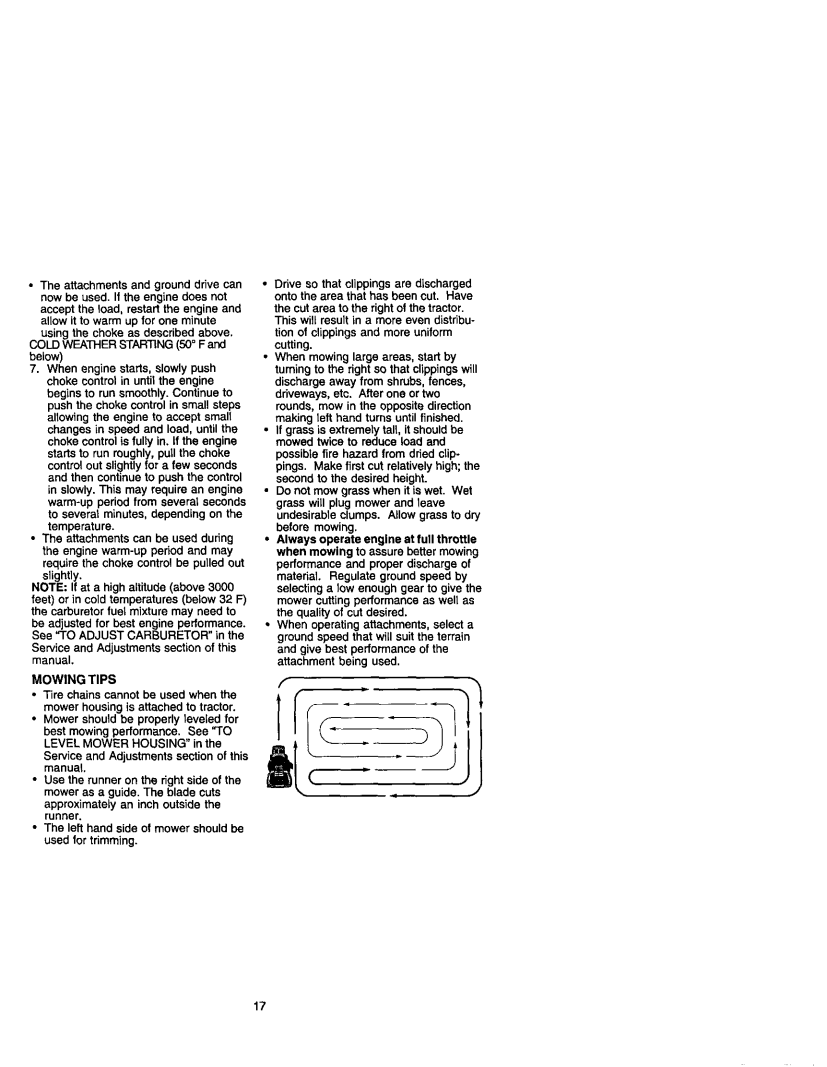

Page 17

The attachments and ground drive can now be used. If the engine does not accept the load, restart the engine and allow it to warm up for one minute

using the choke as desodbedo above. COLD WEATHER STARTING (50 Fand

below)

7.When engine starts, slowly push choke control in until the engine begins to run smoothly. Continue to push the choke control in small steps aUowing the engine to accept small changes in speed and load, until the choke control is fully in. If the engine starts to run roughly, pull the choke control out slightly for a few seconds and then continue to push the control in slowly. This may require an engine

warm-up period from several seconds to several minutes, depending on the

temperature.

The attachments can be used during the engine warm-up period and may require the choke control be pulled out

slightly.

NOTE; If at a high altitude (above 3000 feet) or in cold temperatures (below 32 F) the carburetor fuel mixture may need to be adjusted for best engine performance. See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this manual.

MOWING TIPS

Tire chains cannot be used when the mower housing is attached to tractor.

Mower should be properly leveled for best mowing performance. Bee "TO LEVEL MOWER HOUSING" in the

Service and Adjustments section of this manual,

Use the runner on the right side of the mower as a guide. The blade cuts approximately an inch outside the runner.

The left hand side of mower should be used for trimming.

Drive so that clippings are discharged onto the area that has been cut. Have

the cut area to the right of the tractor. This wilt result in a more even distribu-

tion of clippings and more uniform cutting.

When mowing large areas, start by turning to the right so that clippings will discharge away from shrubs, fences, driveways, etc. After one or two rounds, mow in the opposite direction making lett hand turns until finished.

If grass is extremely tall, it should be mowed twice to reduce load and

possible fire hazard from dried clip- pings. Make first cut relatively high; the second to the desired height.

Do not mow grass when it is wet. Wet grass will plug mower and leave undesirable clumps. Allow grass to dry before mowing.

=Always operate engine at full throttle

when mowing to assure better mowing performance and proper discharge of material. Regulate ground speed by selecting a low enough gear to give the mower cutting performance as well as the quality of cut desired.

When operating attachments, select a ground speed that will suit the terrain and give best performance of the attachment being used.

l

J

17
