Woods Equipment BW180HB, BW180HDQ manual Reinstallation, Gearbox

Page 27

correct diameter. Be sure not to damage the seal lip.

8.Press in housing so that seal is recessed. Press protective seal (8) until seated flush with housing. Verify that the seal (8) is seated correctly.

9.Press bearing (7) into the housing, using a round tube of the correct diameter and a hand press. Secure with shim (13) and snap ring (10).

10.Secure snap ring (11) on input shaft (3) if not already secure.

11.Place gear (1) through top of housing and align gear (1) and gear (5) so that gear teeth are a match.

12.While holding gear (1) in place, slide input shaft (3) through gear (1) and bearing (7). Align splines on shaft (3) and gear (1).

13.Slide shim (12) over input shaft (3) and press bearing (7) onto input shaft (3), using a round tube of the correct diameter and a hand press.

14.Slide shim (13) over input shaft (3) and secure with snap ring (10).

15.Check input shaft end float by moving the input shaft (3) by hand. If end float is higher than 0.012", insert shim between input shaft (3) and rear bearing (7). Repeat until end float is less than

0.012". Check rotational torque by hand. The torque should be less than 2.2 lbs-inch.

16.Check that the gear backlash is between 0.006" and 0.016". You should not have to adjust the backlash.

17.Press in input oil seal (19), using tube of correct diameter. Be careful not to damage seal lip.

18.Press oil cap (20) on to cover the rear of housing, using a tube of the correct diameter.

19.Place top cover (22) on top of housing and secure with six cap screw (23).

20.Check gearbox housing for leaks by plugging all holes except one. Apply 4 psi compressed air and immerse the gearbox in water to verify that there are no leaks.

21.Remove gearbox from water and dry off with compressed air. Add SAE 80W or 90W EP oil until it runs out of side level hole. Tighten all plugs.

Reinstallation

NOTE: Gearbox is heavy: do not attempt to move with- out mechanical assistance.

1.Set gearbox on cutter and fasten with bolts and nuts. Torque bolts to 300 lbs-ft.

2.Attach crossbar (Crossbar Installation, page 31).

1.

Crown gear

22.

Top cover

2.

Gearbox housing

23.

Cap screw 8 mm x 16 (8.8)

3.

Input shaft

24.

Vent plug

4.

Output shaft

25.

Cotter pin

5.

Gear pinion

26.

Washer

6.

Bearing

27.

Side plug

7.

Input bearing





8.

Protective seal





9.

Cotter pin





10.

Snap ring





11.

Snap ring





12.

Shim, 45.3 x 2.5





13.

Shim, 70.3 x 84.7





14.

Nut





15.

Castle nut





16.

Shim, 50.3 x 70.3





17.

Shim





18.

Oil seal (Vertical Shaft)





19.

Oil seal (Horizontal Shaft)





20.

Cap





21.

Bearing

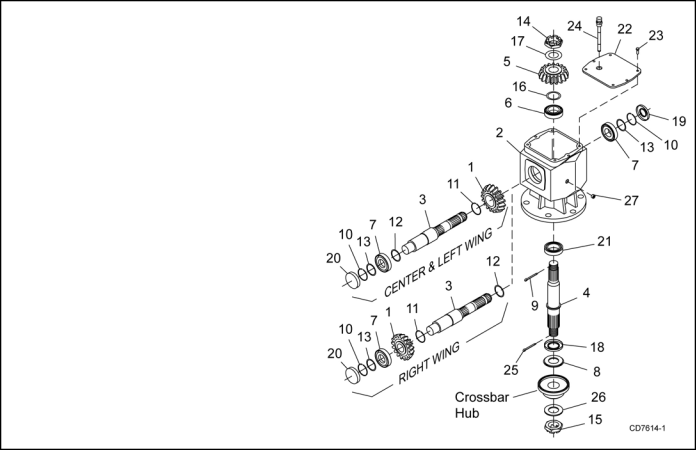

Figure 13. Gearbox

MAN0805 (4/30/2009)

Dealer Service 27
