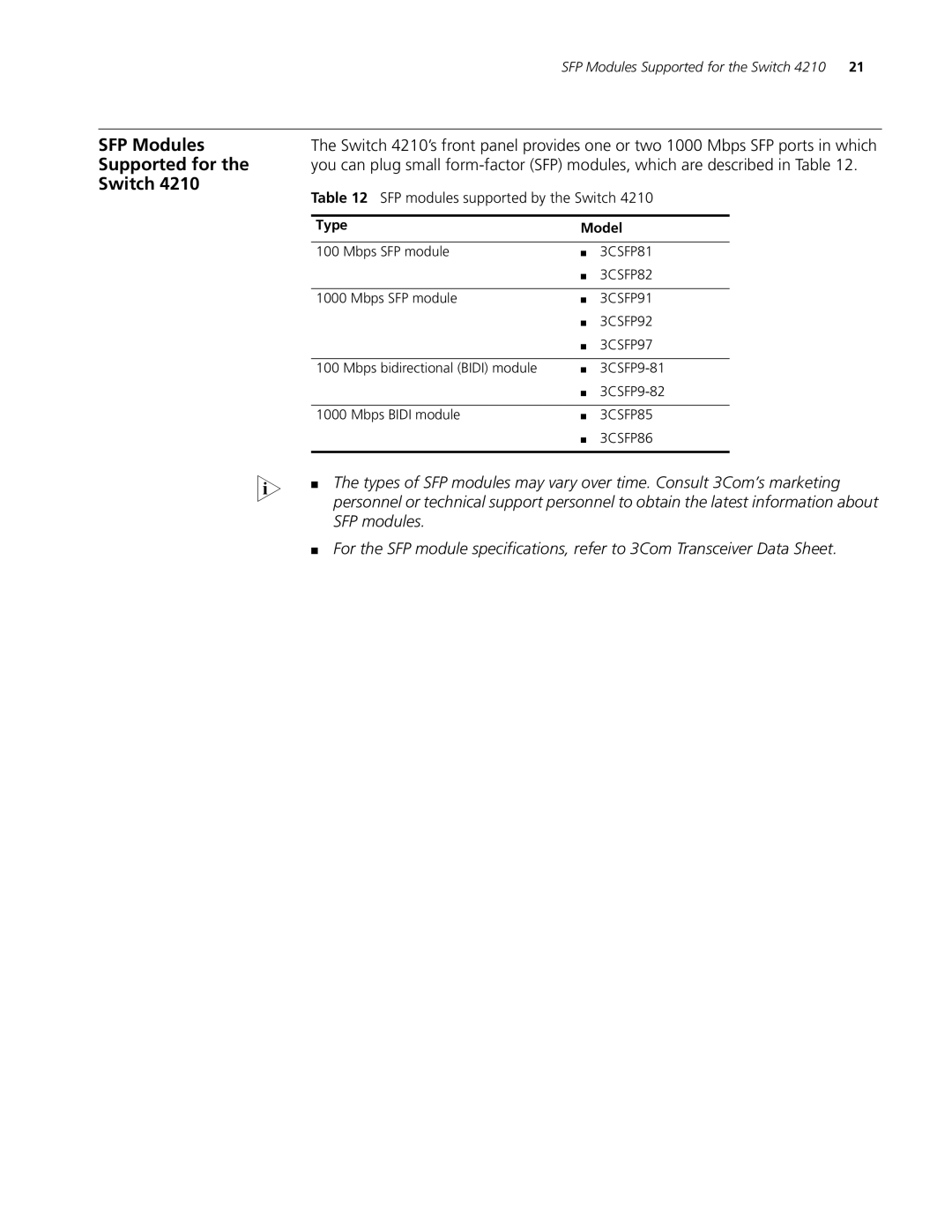

SFP Modules Supported for the Switch 4210 21

SFP Modules	The Switch 4210’s front panel provides one or two 1000 Mbps SFP ports in which
Supported for the	you can plug small form-factor (SFP) modules, which are described in Table 12.
Switch 4210	Table 12 SFP modules supported by the Switch 4210
	Table 12 SFP modules supported by the Switch 4210

	Type	Model

	100 Mbps SFP module	■	3CSFP81
		■	3CSFP82

	1000 Mbps SFP module	■	3CSFP91
		■	3CSFP92
		■	3CSFP97

	100 Mbps bidirectional (BIDI) module	■	3CSFP9-81
		■	3CSFP9-82

	1000 Mbps BIDI module	■	3CSFP85
		■	3CSFP86

n	■ The types of SFP modules may vary over time. Consult 3Com’s marketing
n	personnel or technical support personnel to obtain the latest information about

SFP modules.

■For the SFP module specifications, refer to 3Com Transceiver Data Sheet.
