3Com 4210 9-PORT, 4210 PWR 18-PORT, 4210 PWR 26-PORT, 4210 18-PORT, 4210 26-PORT, 4210 52-PORT System

Connecting a Redundant Power Supply 29

WARNING: When powering any Switch 4210 from an RPS, make sure that the unit is earthed (grounded) by either connecting the power cord to the unit or by connecting the earth terminal on the rear of the unit to a reliable electrical earth (or by connecting both). Ensure that the earth connection is made before connecting the DC supply from the RPS.

3Com switches that support -48V DC RPS inputs, and are PoE enabled, can only be powered by an RPS that complies with the isolation requirements of IEEE-Std 802.3af. Non PoE enabled switches do not have this restriction.

WARNING: Do not use a standard 'positive-earthed' -48V redundant power system suitable for use with telecommunications equipment with the 3Com Power-over-Ethernet (PoE) network switches. In order to meet the IEEE 802.3af (PoE) specification, the -48V output must be isolated from earth (ground) and meet the isolation requirements in that specification.

WARNING: Any RPS must be approved as a SELV output in accordance with IEC 60950-1/UL 60950-1/EN 60950-1.

WARNING: The characteristics of the Switch 4210 DC supply input are provided in Table 11 on page 19.

You can power the Switch 4210 using three methods:

■AC Mains only — this does not offer any power redundancy. If the AC mains supply or the AC power supply fails, the switch powers off.

■AC Mains and -48V DC (primary supply) — the internal AC supply acts as the backup in the event of a DC power failure.

■DC only — the switch does not need an AC supply and the resiliency is provided by the DC supply. This is useful in environments where only DC power is available.

The RPS provides two main benefits:

■Power Redundancy — if a switch is powered from the mains supply unit, a failure of the internal power supply causes the switch to fail. You can avoid this by connecting both the AC and DC RPS supplies to the switch. You can also add redundancy to the DC power by using (N+1) DC power supplies to further increase the availability of the system.

■Uninterruptable Power — the system allows easy connection and maintenance of batteries to the RPS shelf to further increase the availability of the system.

Specifying the 3Com’s redundant power solution allows you to use any off-the-shelf -48V DC Redundant Power RPS that meets the requirements defined in Table 11 on page 19.

System

For an approved vendor list, more details about purchasing the 3Com recommended RPS, and a full set of requirements go to:

http://www.3Com.com/RPS

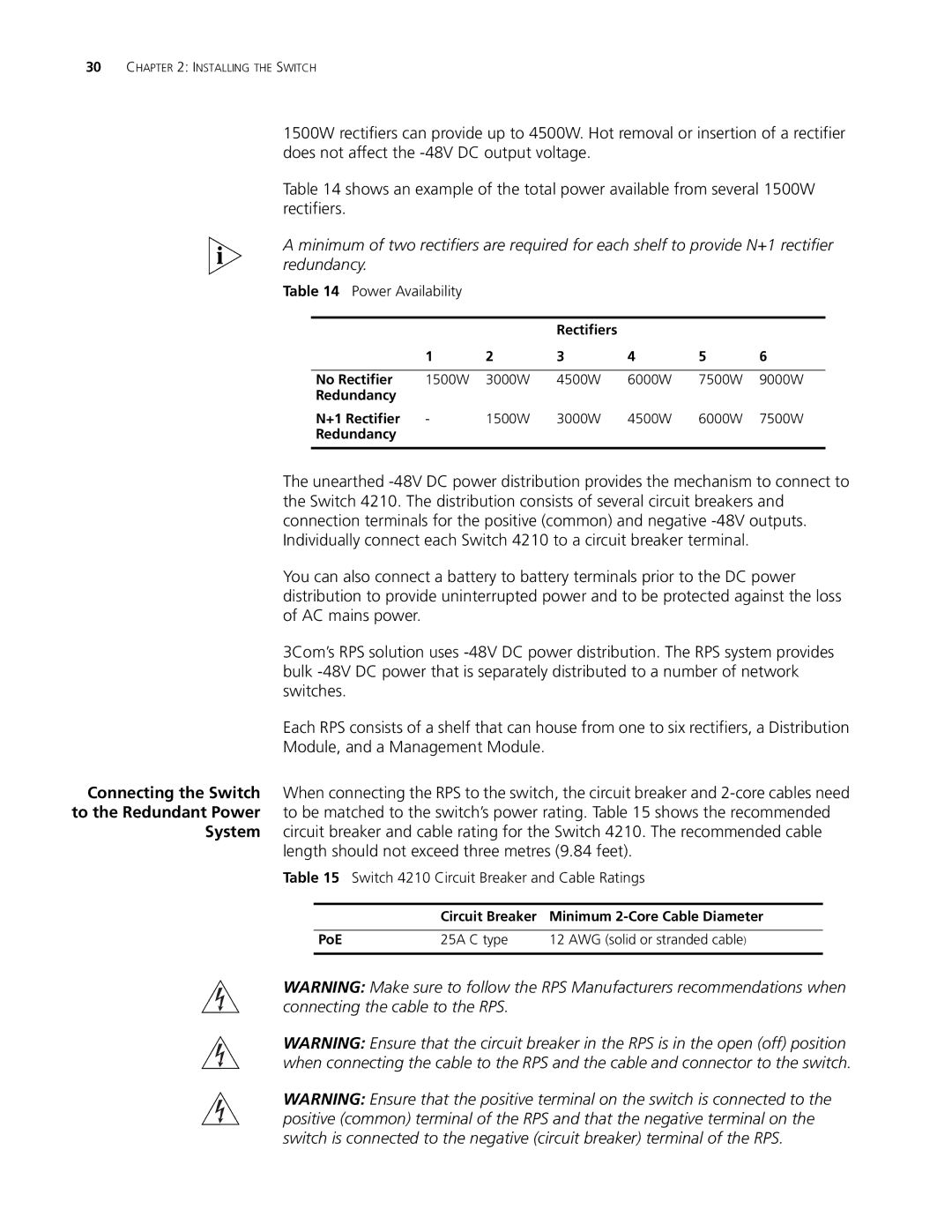

The 3Com recommended RPS generates -48V DC power using power supply units (or rectifiers). The outputs of the rectifier(s) are connected together so that you can increase the total -48V power available by adding rectifiers. For example, three
