3Com 4210 9-PORT manual Pin-Outs, Null Modem Cable, PC-AT Serial Cable, RJ-45 to RS-232 25-pin

Models: 4210 52-PORT 4210 PWR 18-PORT 4210 PWR 26-PORT 4210 PWR 9-PORT 4210 26-PORT 4210 9-PORT 4210 18-PORT

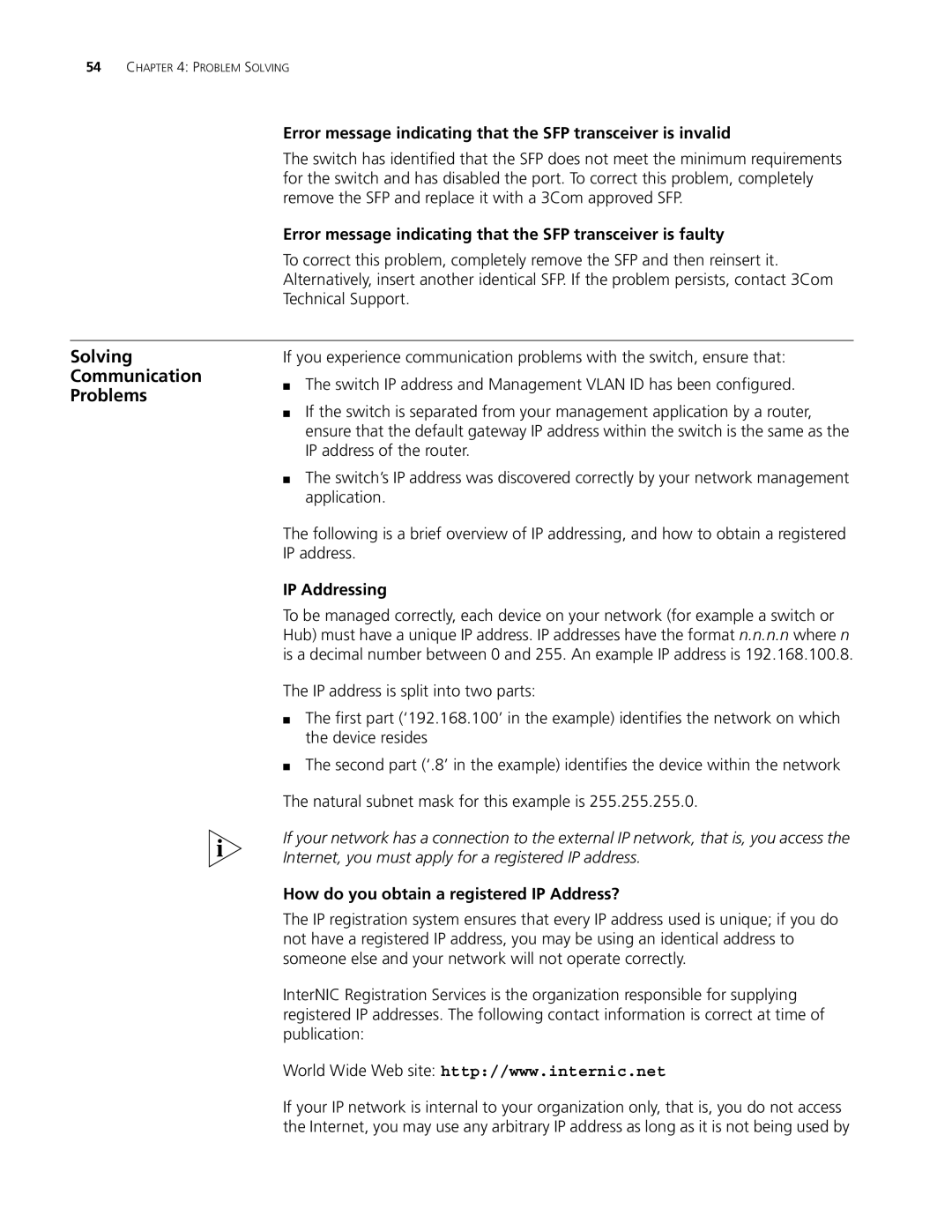

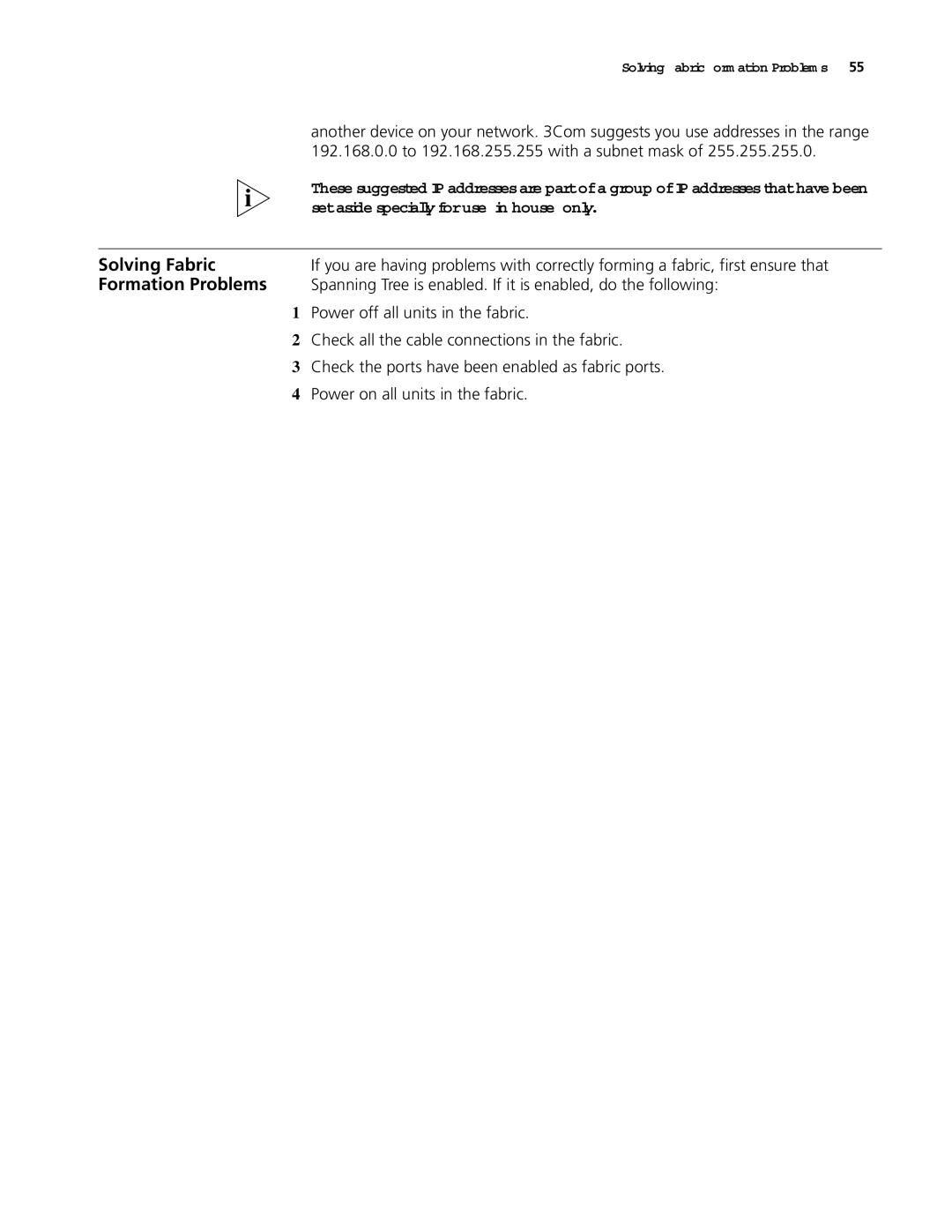

1 74

Download 74 pages 2.79 Kb

Page 57

Image 57

A

PIN-OUTS

Null Modem Cable

RJ-45 to RS-232 25-pin

Cable connector: RJ-45 female	PC/Terminal
	Cable connector: 25-pin male/female

Screen	Shell	1	Screen
TxD	3	3	RxD
RxD	2	2	TxD
Ground	5	7	Ground
RTS	7	4	RTS
CTS	8	20	DTR
DSR	6	5	CTS
DCD	1	6	DSR
DTR	4	8	DCD

only required if screen

always required

required for handshake

PC-AT Serial Cable

RJ-45 to 9-pin

Cable connector: RJ-45 female	PC-AT Serial Port
	Cable connector: 9-pin female

Screen	Shell	Shell	Screen
DTR	4	1	DCD
TxD	3	2	RxD
RxD	2	3	TxD
CTS	8	4	DTR
Ground	5	5	Ground
DSR	6	6	DSR
RTS	7	7	RTS
DCD	1	8	CTS

only required if screen

Required for handshake

Always required

required for handshake

always required

required for handshake

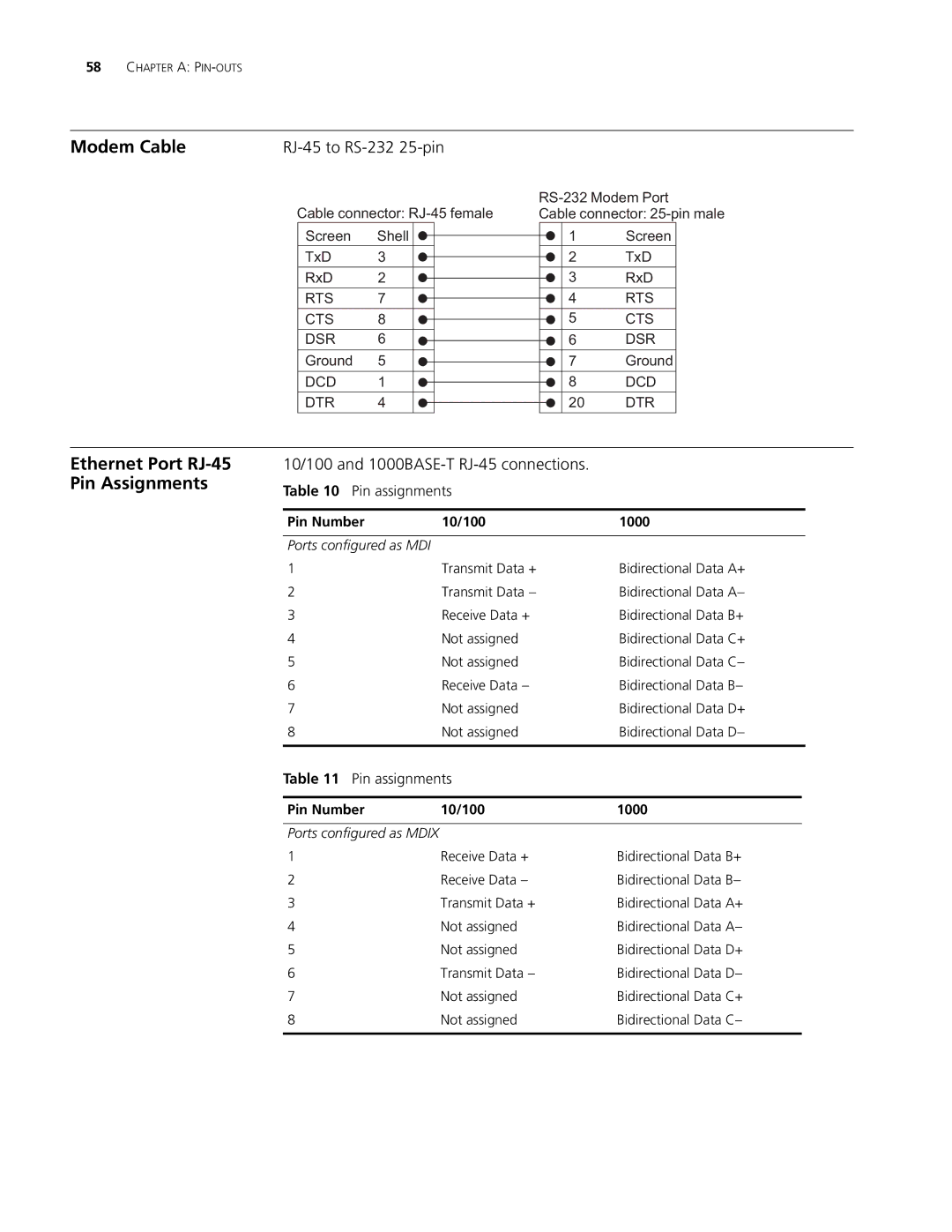

Image 57

3Com 4210 9-PORT, 4210 PWR 18-PORT Pin-Outs, Null Modem Cable, PC-AT Serial Cable, RJ-45 to RS-232 25-pin, RJ-45 to 9-pin
