Rack-Mounting the Switch 25

Figure 17 Installing the switch in a 19-inch rack

Mounting the front bracket

Mount the front bracket as shown in Figure 18 and Figure 19.

Figure 18 Mount the front bracket to the device

Screw	Front
	Front
	bracket

Figure 19 Mount the front bracket to the mount angel of the rack

Screw

Front bracket

Front mount angle

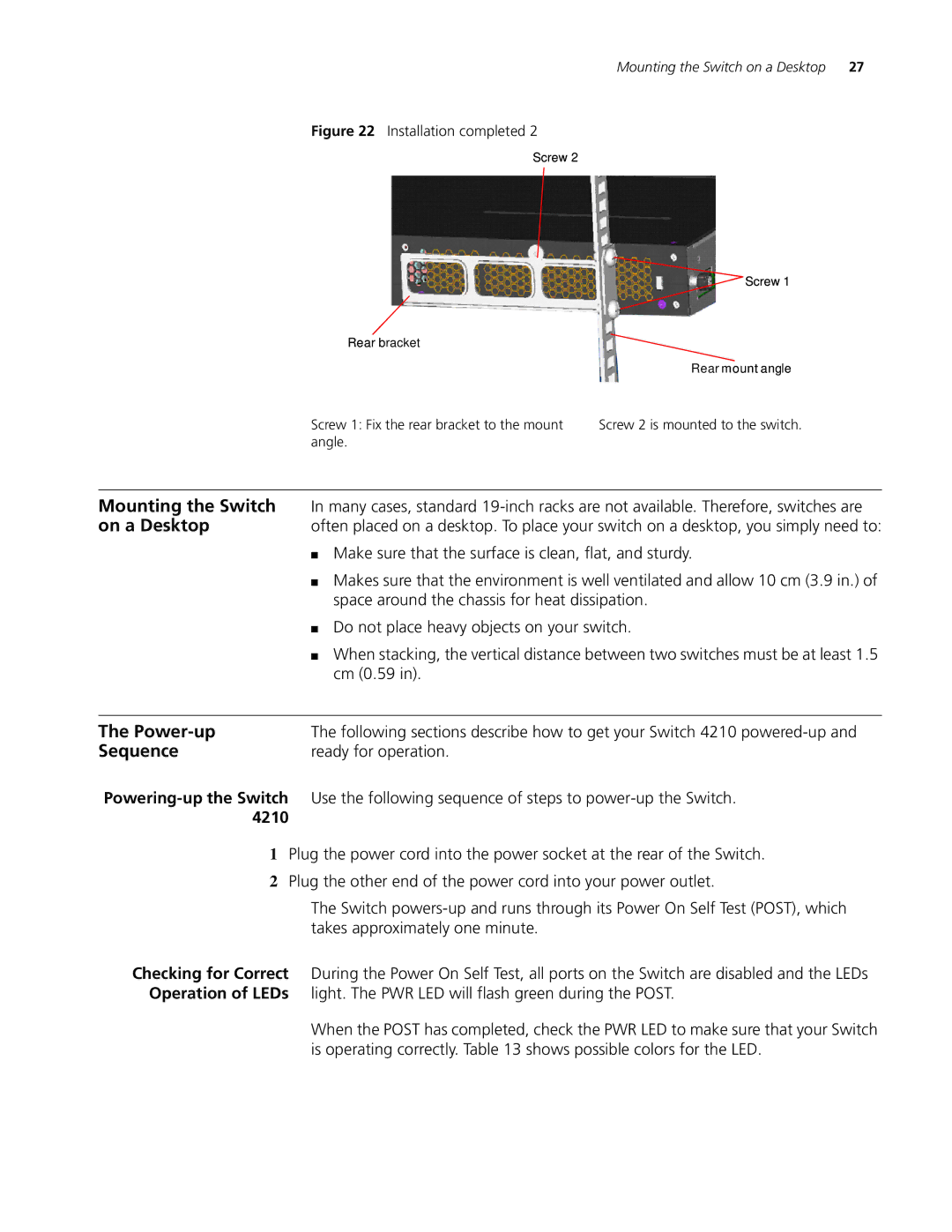

Mounting the rear The Switch 4210 26-Port does not need rear brackets. The description for bracket mounting rear brackets is only for the Switch 4210 PWR 24-Port.

Mount a screw on the back of the switch to closely connect the switch with the rear bracket to support the switch. There are three positions for screw mounting as shown in Figure 20.
