D-Link AC1600 user manual Length, DNS Address

Section 3 - Configuration

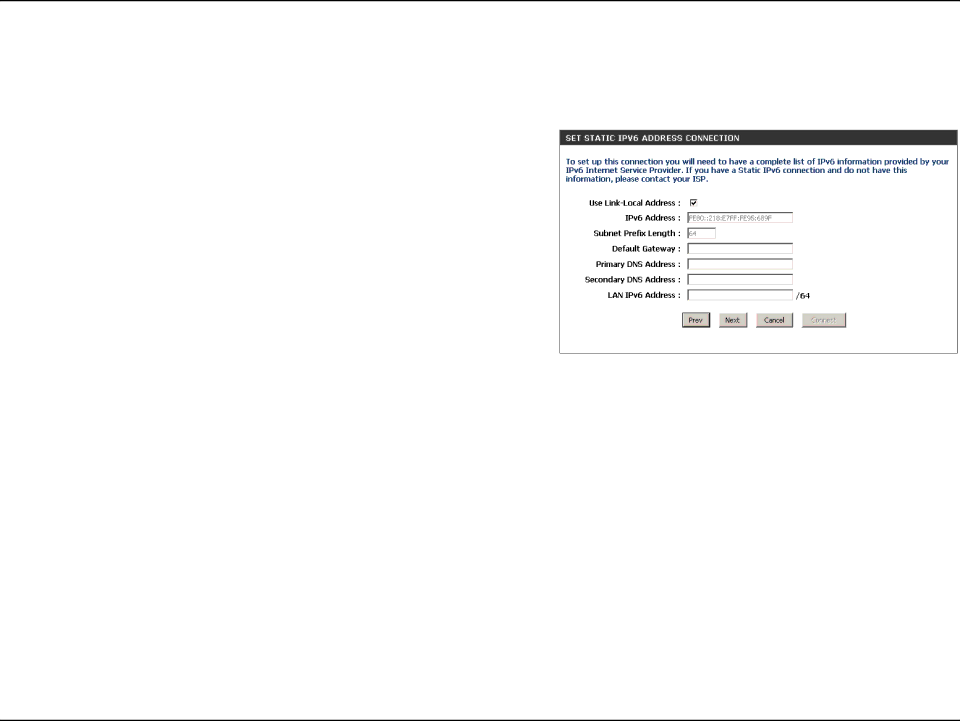

Static IPv6 Address Connection

This mode is used when your ISP provides you with a set IPv6 addresses that does not change. The IPv6 information is manually entered in your IPv6 configuration settings. You must enter the IPv6 address, Subnet Prefix Length, Default Gateway, Primary DNS Server, and Secondary DNS Server. Your ISP provides you with all this information.

Use Link-LocalThe Link-local address is used by nodes and routers when Address: communicating with neighboring nodes on the same link.

This mode enables IPv6-capable devices to communicate with each other on the LAN side.

IPv6 Address: Enter the WAN IPv6 address for the router here.

Subnet Prefix Enter the WAN subnet prefix length value used here.

Length:

Default Gateway: Enter the WAN default gateway IPv6 address used here.

Primary IPv6 DNS Enter the WAN primary DNS Server address used here.

Address:

Secondary IPv6 Enter the WAN secondary DNS Server address used here.

DNS Address:

LAN IPv6 Address: These are the settings of the LAN (Local Area Network) IPv6 interface for the router. The router’s LAN IPv6 Address configuration is based on the IPv6 Address and Subnet assigned by your ISP. (A subnet with prefix /64 is supported in LAN.)

D-Link DIR-862L User Manual 69
