Page 67

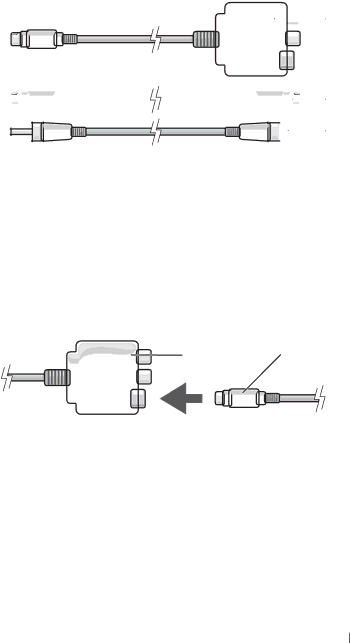

1Turn off the computer and the TV and/or the audio device that you want to connect.

1

2

3

1 composite video adapter

2

S-video cable

3S/PDIF digital audio cable

1Turn off the computer and the TV and/or the audio device that you want to connect.

2Connect the composite video adapter to the S-video TV-out connector on your computer.

3Plug one end of the S-video cable into the S-video output connector on the composite video adapter.

1

2

1 composite video adapter

2

S-video cable

4Plug the other end of the S-video cable into the S-video input connector on the TV.

5Plug one end of the S/PDIF digital audio cable into the digital audio connector on the composite video adapter cable.

Using Multimedia

67
