Dell D530 composite video adapter, standard audio cable, Using Multimedia, composite video cable

Models: D530

1 176

Download 176 pages 37.99 Kb

Page 69

composite video cable

1

2

3

1 composite video adapter

2

composite video cable

3standard audio cable

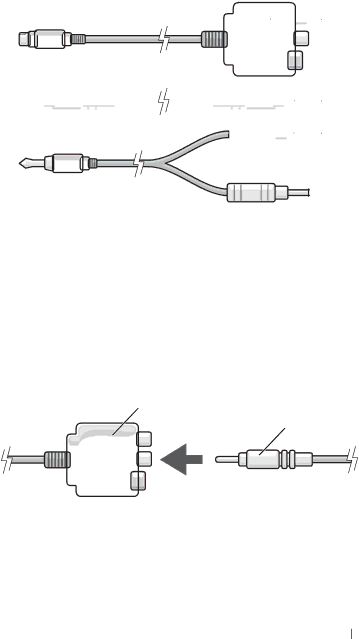

1Turn off the computer and the TV and/or audio device that you want to connect.

2Connect the composite video adapter to the S-video TV-out connector on your computer.

3Plug one end of the composite video cable into the composite video- output connector on the composite video adapter.

1

2

1 composite video adapter

2

composite video cable

4Plug the other end of the composite video cable into the composite video- input connector on the TV.

Using Multimedia

69

Image 69

Dell D530 manual composite video adapter, standard audio cable, Using Multimedia, composite video cable
