Page 72

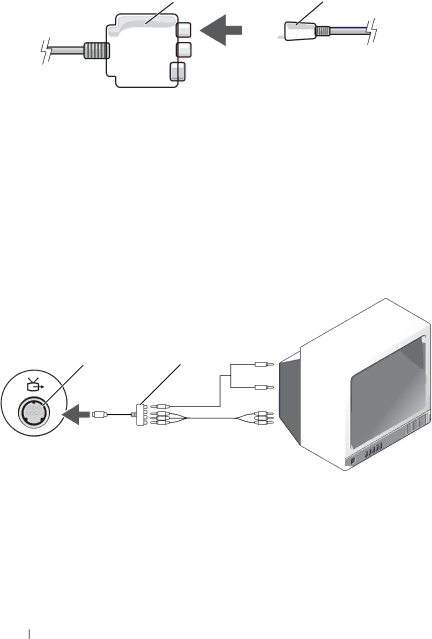

Component Video and Standard Audio

1	2

1 composite video adapter

2

S/PDIF digital audio cable

6Plug the other end of the digital audio cable into the S/PDIF input connector on your TV or other audio device.

7Turn on the TV, turn on any audio device that you connected (if applicable), and then turn on the computer.

8See "Enabling the Display Settings for a TV" on page 78 to ensure that the computer recognizes and works properly with the TV.

Component Video and Standard Audio

12

1 S-video TV-out connector

2

component video adapter

72

Using Multimedia

Image 72
