Docking Port Information

The docking port is used for connecting the laptop to a docking station (optional).

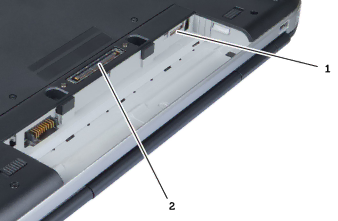

1.SIM card slot

2.Docking Port

51

Image 51

Dell E5530 owner manual Docking Port Information
