PRODUCT SPECIFICATIONS

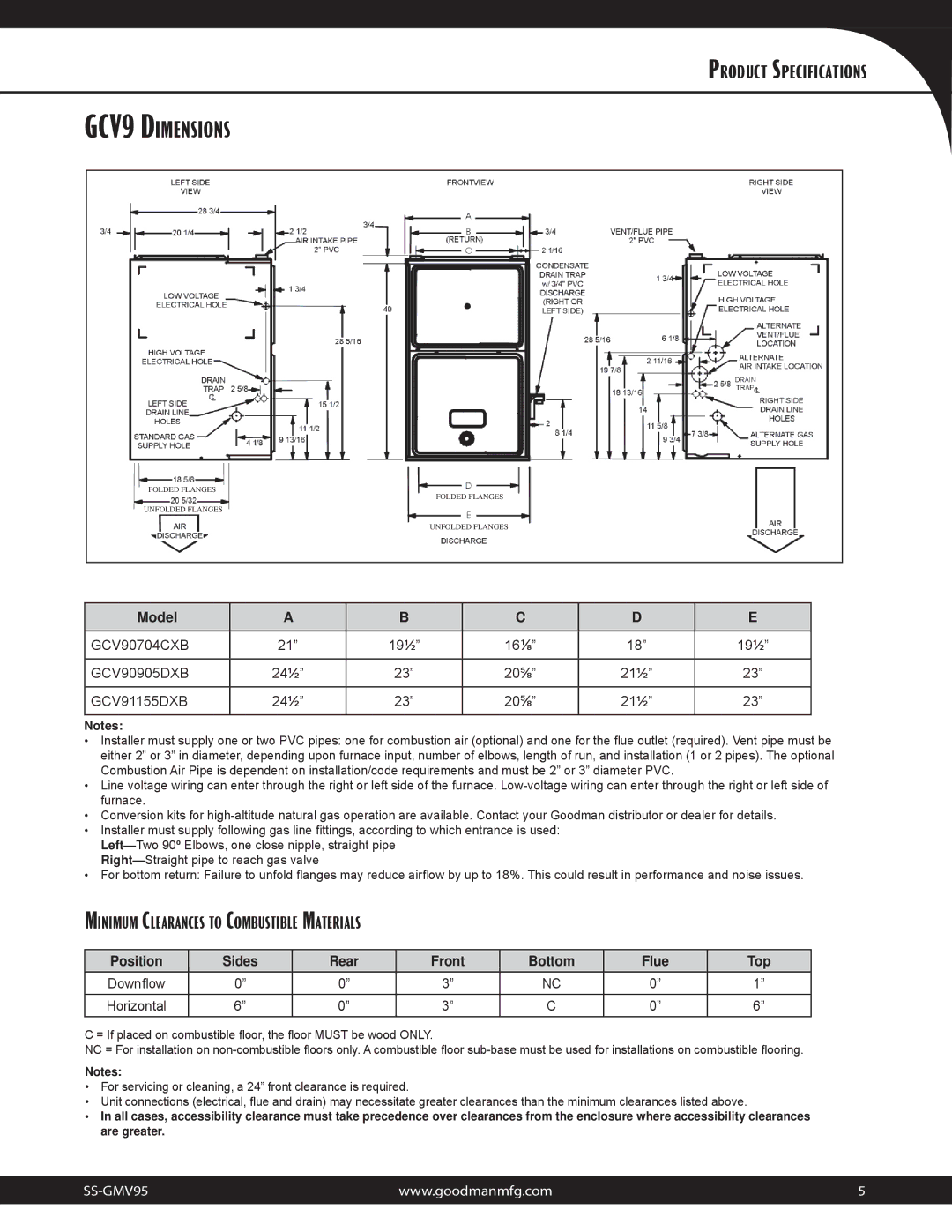

GCV9 DIMENSIONS

FOLDED FLANGES

FOLDED FLANGES

UNFOLDED FLANGES

UNFOLDED FLANGES

Model	A	B	C	D	E
GCV90704CXB	21”	19½”	16⅛”	18”	19½”
GCV90905DXB	24½”	23”	20⅝”	21½”	23”
GCV91155DXB	24½”	23”	20⅝”	21½”	23”

Notes:

•Installer must supply one or two PVC pipes: one for combustion air (optional) and one for the flue outlet (required). Vent pipe must be either 2” or 3” in diameter, depending upon furnace input, number of elbows, length of run, and installation (1 or 2 pipes). The optional Combustion Air Pipe is dependent on installation/code requirements and must be 2” or 3” diameter PVC.

•Line voltage wiring can enter through the right or left side of the furnace. Low-voltage wiring can enter through the right or left side of furnace.

•Conversion kits for high-altitude natural gas operation are available. Contact your Goodman distributor or dealer for details.

•Installer must supply following gas line fittings, according to which entrance is used: Left—Two 90º Elbows, one close nipple, straight pipe

Right—Straight pipe to reach gas valve

•For bottom return: Failure to unfold flanges may reduce airflow by up to 18%. This could result in performance and noise issues.

MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS

Position	Sides	Rear	Front	Bottom	Flue	Top
Downflow	0”	0”	3”	NC	0”	1”
Horizontal	6”	0”	3”	C	0”	6”

C = If placed on combustible floor, the floor MUST be wood ONLY.

NC = For installation on non-combustible floors only. A combustible floor sub-base must be used for installations on combustible flooring.

Notes:

•For servicing or cleaning, a 24” front clearance is required.

•Unit connections (electrical, flue and drain) may necessitate greater clearances than the minimum clearances listed above.

•In all cases, accessibility clearance must take precedence over clearances from the enclosure where accessibility clearances are greater.
