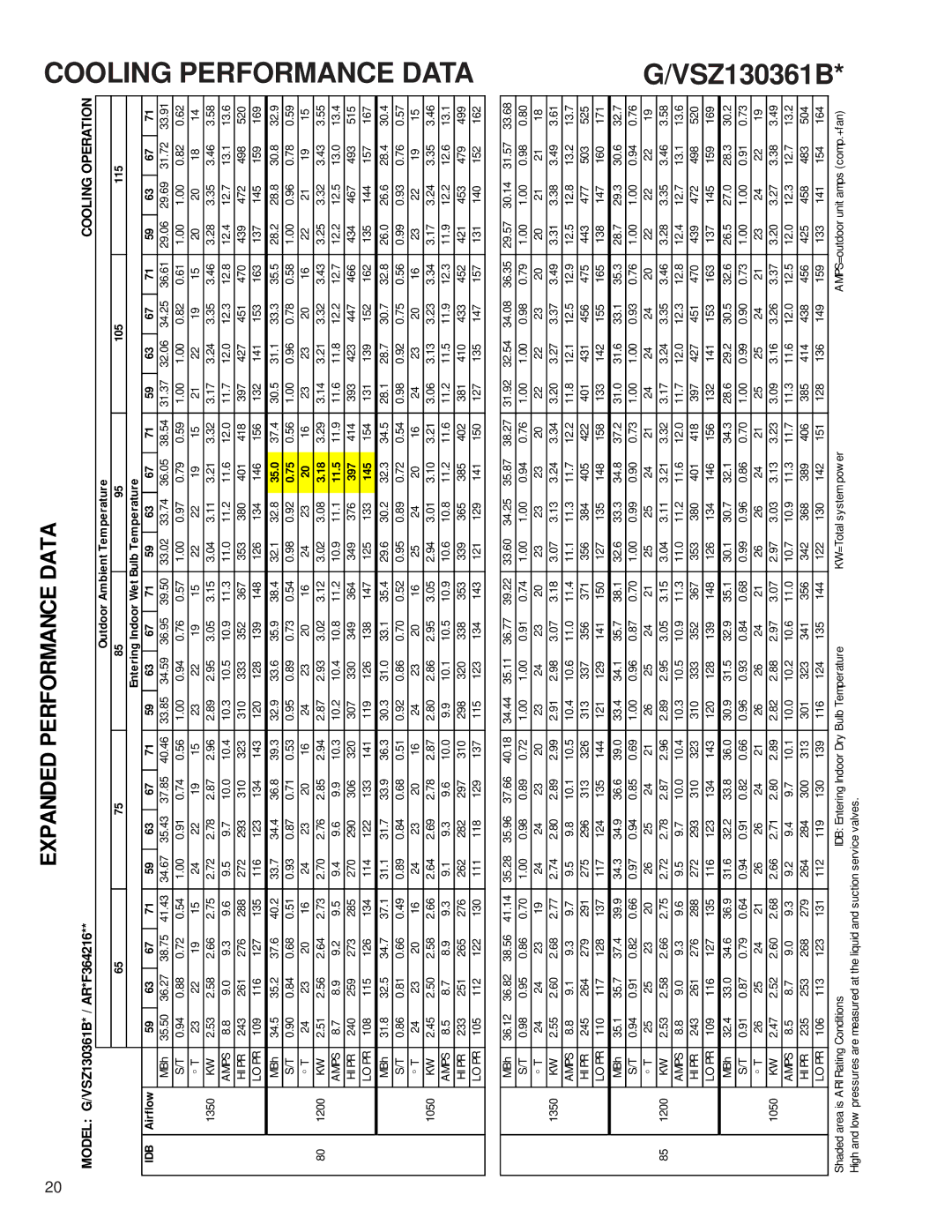

20									EXPANDED PERFORMANCE DATA
	MODEL: G/VSZ130361B* / AR*F364216**																											COOLING OPERATION
																	Outdoor Ambient Temperature
						65					75					85					95				105				115
															Entering Indoor Wet				Bulb Temperature
	IDB	Airflow		59	63		67	71	59	63		67	71	59	63		67	71	59	63		67	71	59	63	67	71	59	63	67	71
			MBh	35.50	36.27		38.75	41.43	34.67	35.43		37.85	40.46	33.85	34.59		36.95	39.50	33.02	33.74		36.05	38.54	31.37	32.06	34.25	36.61	29.06	29.69	31.72	33.91
			S/T	0.94	0.88	0.72		0.54	1.00	0.91	0.74		0.56	1.00	0.94	0.76		0.57	1.00	0.97	0.79		0.59	1.00	1.00	0.82	0.61	1.00	1.00	0.82	0.62
			° T	23	22	19		15	24	22	19		15	23	22	19		15	22	22	19		15	21	22	19	15	20	20	18	14
		1350
			KW	2.53	2.58	2.66		2.75	2.72	2.78	2.87		2.96	2.89	2.95	3.05		3.15	3.04	3.11	3.21		3.32	3.17	3.24	3.35	3.46	3.28	3.35	3.46	3.58
			AMPS	8.8	9.0	9.3		9.6	9.5	9.7	10.0		10.4	10.3	10.5	10.9		11.3	11.0	11.2	11.6		12.0	11.7	12.0	12.3	12.8	12.4	12.7	13.1	13.6
			HI PR	243	261	276		288	272	293	310		323	310	333	352		367	353	380	401		418	397	427	451	470	439	472	498	520
			LO PR	109	116	127		135	116	123	134		143	120	128	139		148	126	134	146		156	132	141	153	163	137	145	159	169
			MBh	34.5	35.2	37.6		40.2	33.7	34.4	36.8		39.3	32.9	33.6	35.9		38.4	32.1	32.8		35.0	37.4	30.5	31.1	33.3	35.5	28.2	28.8	30.8	32.9
			S/T	0.90	0.84	0.68		0.51	0.93	0.87	0.71		0.53	0.95	0.89	0.73		0.54	0.98	0.92		0.75	0.56	1.00	0.96	0.78	0.58	1.00	0.96	0.78	0.59
			° T	24	23	20		16	24	23	20		16	24	23	20		16	24	23		20	16	23	23	20	16	22	21	19	15
	80	1200	KW	2.51	2.56	2.64		2.73	2.70	2.76	2.85		2.94	2.87	2.93	3.02		3.12	3.02	3.08		3.18	3.29	3.14	3.21	3.32	3.43	3.25	3.32	3.43	3.55
			AMPS	8.7	8.9	9.2		9.5	9.4	9.6	9.9		10.3	10.2	10.4	10.8		11.2	10.9	11.1		11.5	11.9	11.6	11.8	12.2	12.7	12.2	12.5	13.0	13.4
			HI PR	240	259	273		285	270	290	306		320	307	330	349		364	349	376		397	414	393	423	447	466	434	467	493	515
			LO PR	108	115	126		134	114	122	133		141	119	126	138		147	125	133		145	154	131	139	152	162	135	144	157	167
			MBh	31.8	32.5	34.7		37.1	31.1	31.7	33.9		36.3	30.3	31.0	33.1		35.4	29.6	30.2		32.3	34.5	28.1	28.7	30.7	32.8	26.0	26.6	28.4	30.4
			S/T	0.86	0.81	0.66		0.49	0.89	0.84	0.68		0.51	0.92	0.86	0.70		0.52	0.95	0.89	0.72		0.54	0.98	0.92	0.75	0.56	0.99	0.93	0.76	0.57
			° T	24	23	20		16	24	23	20		16	24	23	20		16	25	24	20		16	24	23	20	16	23	22	19	15
		1050
			KW	2.45	2.50	2.58		2.66	2.64	2.69	2.78		2.87	2.80	2.86	2.95		3.05	2.94	3.01	3.10		3.21	3.06	3.13	3.23	3.34	3.17	3.24	3.35	3.46
			AMPS	8.5	8.7	8.9		9.3	9.1	9.3	9.6		10.0	9.9	10.1	10.5		10.9	10.6	10.8	11.2		11.6	11.2	11.5	11.9	12.3	11.9	12.2	12.6	13.1
			HI PR	233	251	265		276	262	282	297		310	298	320	338		353	339	365	385		402	381	410	433	452	421	453	479	499
			LO PR	105	112	122		130	111	118	129		137	115	123	134		143	121	129	141		150	127	135	147	157	131	140	152	162
			MBh	36.12	36.82	38.56		41.14	35.28	35.96	37.66		40.18	34.44	35.11	36.77		39.22	33.60	34.25	35.87		38.27	31.92	32.54	34.08	36.35	29.57	30.14	31.57	33.68
			S/T	0.98	0.95	0.86		0.70	1.00	0.98	0.89		0.72	1.00	1.00	0.91		0.74	1.00	1.00	0.94		0.76	1.00	1.00	0.98	0.79	1.00	1.00	0.98	0.80
			° T	24	24	23		19	24	24	23		20	23	24	23		20	23	23	23		20	22	22	23	20	20	21	21	18
		1350
			KW	2.55	2.60	2.68		2.77	2.74	2.80	2.89		2.99	2.91	2.98	3.07		3.18	3.07	3.13	3.24		3.34	3.20	3.27	3.37	3.49	3.31	3.38	3.49	3.61
			AMPS	8.8	9.1	9.3		9.7	9.5	9.8	10.1		10.5	10.4	10.6	11.0		11.4	11.1	11.3	11.7		12.2	11.8	12.1	12.5	12.9	12.5	12.8	13.2	13.7
			HI PR	245	264	279		291	275	296	313		326	313	337	356		371	356	384	405		422	401	431	456	475	443	477	503	525
			LO PR	110	117	128		137	117	124	135		144	121	129	141		150	127	135	148		158	133	142	155	165	138	147	160	171
			MBh	35.1	35.7	37.4		39.9	34.3	34.9	36.6		39.0	33.4	34.1	35.7		38.1	32.6	33.3	34.8		37.2	31.0	31.6	33.1	35.3	28.7	29.3	30.6	32.7
			S/T	0.94	0.91	0.82		0.66	0.97	0.94	0.85		0.69	1.00	0.96	0.87		0.70	1.00	0.99	0.90		0.73	1.00	1.00	0.93	0.76	1.00	1.00	0.94	0.76
			° T	25	25	23		20	26	25	24		21	26	25	24		21	25	25	24		21	24	24	24	20	22	22	22	19
	85	1200
			KW	2.53	2.58	2.66		2.75	2.72	2.78	2.87		2.96	2.89	2.95	3.05		3.15	3.04	3.11	3.21		3.32	3.17	3.24	3.35	3.46	3.28	3.35	3.46	3.58
			AMPS	8.8	9.0	9.3		9.6	9.5	9.7	10.0		10.4	10.3	10.5	10.9		11.3	11.0	11.2	11.6		12.0	11.7	12.0	12.3	12.8	12.4	12.7	13.1	13.6
			HI PR	243	261	276		288	272	293	310		323	310	333	352		367	353	380	401		418	397	427	451	470	439	472	498	520
			LO PR	109	116	127		135	116	123	134		143	120	128	139		148	126	134	146		156	132	141	153	163	137	145	159	169
			MBh	32.4	33.0	34.6		36.9	31.6	32.2	33.8		36.0	30.9	31.5	32.9		35.1	30.1	30.7	32.1		34.3	28.6	29.2	30.5	32.6	26.5	27.0	28.3	30.2
			S/T	0.91	0.87	0.79		0.64	0.94	0.91	0.82		0.66	0.96	0.93	0.84		0.68	0.99	0.96	0.86		0.70	1.00	0.99	0.90	0.73	1.00	1.00	0.91	0.73
			° T	26	25	24		21	26	26	24		21	26	26	24		21	26	26	24		21	25	25	24	21	23	24	22	19
		1050
			KW	2.47	2.52	2.60		2.68	2.66	2.71	2.80		2.89	2.82	2.88	2.97		3.07	2.97	3.03	3.13		3.23	3.09	3.16	3.26	3.37	3.20	3.27	3.38	3.49
			AMPS	8.5	8.7	9.0		9.3	9.2	9.4	9.7		10.1	10.0	10.2	10.6		11.0	10.7	10.9	11.3		11.7	11.3	11.6	12.0	12.5	12.0	12.3	12.7	13.2
			HI PR	235	253	268		279	264	284	300		313	301	323	341		356	342	368	389		406	385	414	438	456	425	458	483	504
			LO PR	106	113	123		131	112	119	130		139	116	124	135		144	122	130	142		151	128	136	149	159	133	141	154	164
	Shaded area is ARI Rating Conditions									IDB: Entering Indoor Dry Bulb Temperature									KW=Total system pow er								AMPS=outdoor unit amps (comp.+fan)
	High and low pressures are measured at the liquid and suction service valves.

COOLING PERFORMANCE DATA

G/VSZ130361B*
