Page 104

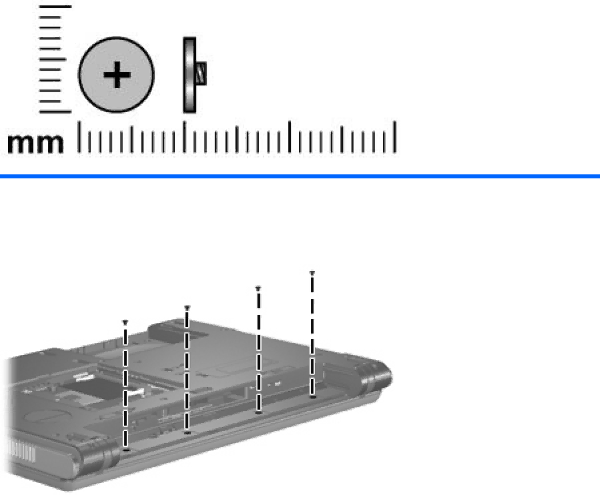

Phillips PM2.0×2.0 screw

Color	Quantity	Length	Thread	Head width

Black	4	2.0 mm	2.0 mm	7.0 mm

Where used: 4 screws that secure the switch cover to the computer

96 Chapter 7 Screw listing

Image 104
