Removal and Replacement Procedures

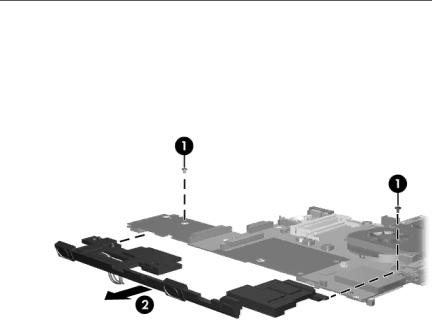

4.Remove the two silver Phillips PM2.5×6.0 screws 1 that secure the speaker assembly to the system board.

5.Slide the speaker assembly 2 forward until it clears the system board.

Removing the Speaker Assembly

Reverse the above procedure to install the speaker assembly.

Maintenance and Service Guide

5–63
