Removal and Replacement Procedures

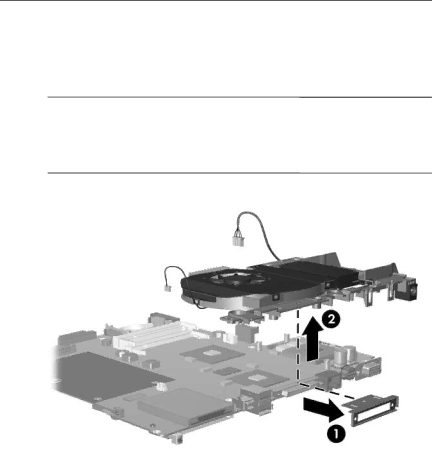

5.Slide the expansion port 2 bracket 1 away from the system board.

6.Remove the fan/heat sink assembly 2.

Due to the adhesive quality of the thermal paste located between the fan/heat sink assembly and processor, it may be necessary to move the fan/heat sink assembly from side to side to detach the it from the processor.

Removing the Fan/Heat Sink Assembly

Maintenance and Service Guide

5–67
