Phillips PM2.0×4.0 screw | HP tx2000 manual

Phillips PM2.0×4.0 screw

Color	Quantity	Length	Thread	Head width

Silver	10	4.0 mm	2.0 mm	4.5 mm

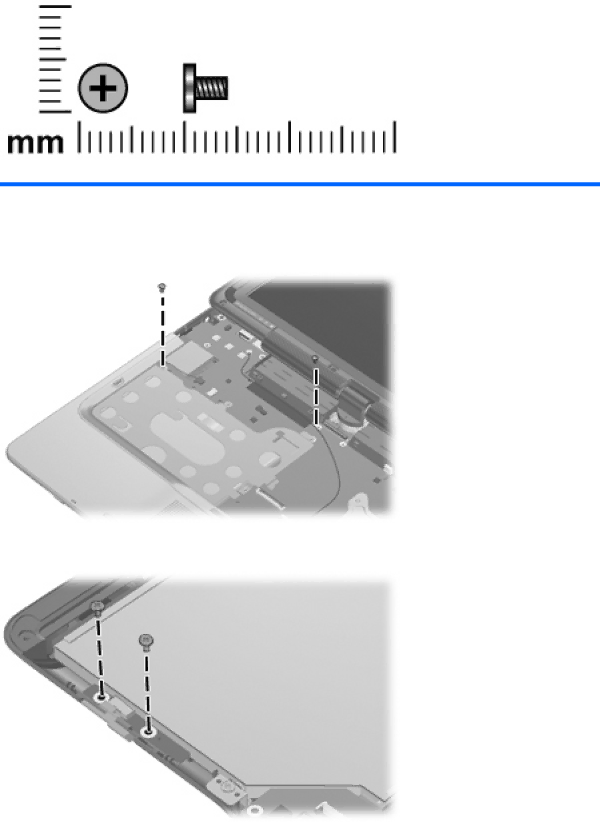

Where used: 2 screws that secure the top cover to the computer

Phillips PM2.0×4.0 screw 87

Image 95

HP tx2000 manual Phillips PM2.0×4.0 screw, Color Quantity Length Thread Head width Silver
