Installing Your Wall Mount Kit

Your LCD Monitor : Front View Product Description • Connecting to Your PC • Getting Started • Optimizing Performance

Accessories (optional) : Installing the USB Hub • Installing the Protective Cover • Installing the Wall Mount Kit

Installing the Wall Mount Kit

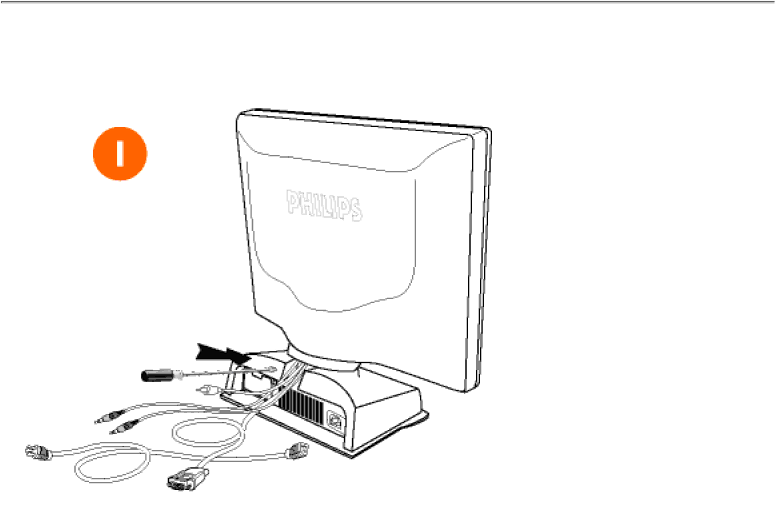

1) Please turn off the monitor

and unplug all cables, then remove the screw in the monitor base and pull it away completely.

file:///E/manual/english/150P/install/m_kit/mkit_inst.htm (1 of 4) [12/13/1999 8:01:06 PM]
