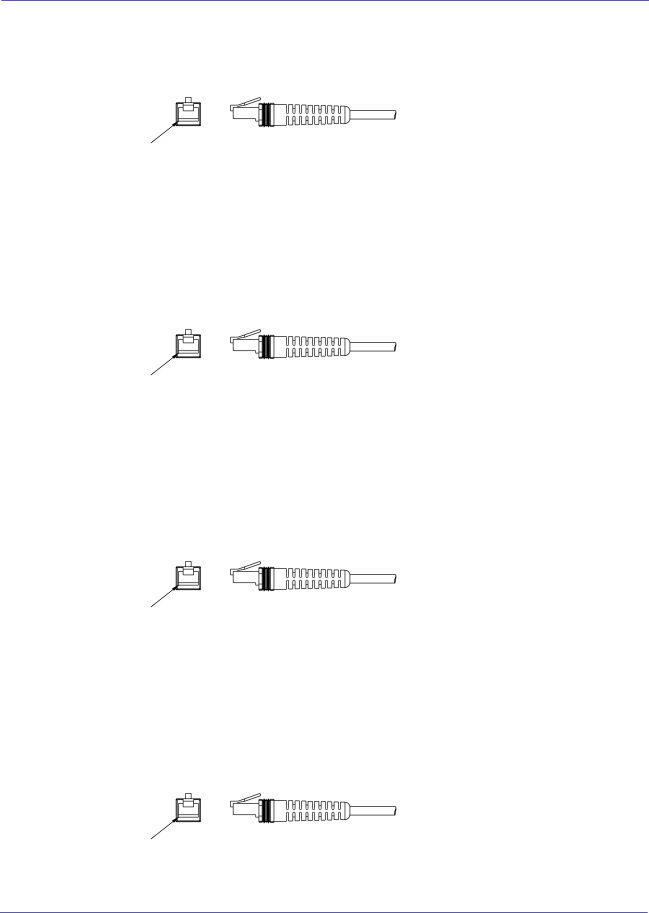

Cable Pinouts
IBM USB
1
2
3
4D -
6D +
8VIN
9GND
10 Position RJ
Pin 1 | (Scanner End) |
|
USB & USB Keyboard
1
2
3
4D -
6D +
8VBUS_VIN
9GND
10 Position RJ
Pin 1 | (Scanner End) |
|
Wand Emulation
1
2
3WAND~
8VCC_IN
9GND
10 Position RJ
Pin 1 | (Scanner End) |
|
Keyboard Wedge
1
2KB_DATA
3AT_CLK
4KB_CLK
6AT_DATA
8VCC_IN
9GND
10 Position RJ
Pin 1 | (Scanner End) |
|
Magellan® 1400i |
