1-3 Installation of the CPU and Heatsink

Before installing the CPU, please comply with the following conditions:

1. Please make sure that the motherboard supports the CPU.

2. Please take note of the one indented corner of the CPU. If you install the CPU

in the wrong direction, the CPU will not insert properly. If this occurs, please change the insert direction of the CPU.

3.Please add an even layer of heat sink paste between the CPU and heatsink.

4.Please make sure the heatsink is installed on the CPU prior to system use, otherwise overheating and permanent damage of the CPU may occur.

5.Please set the CPU host frequency in accordance with the processor specifications. It is not recommended that the system bus frequency be set beyond hardware specifications since it does not meet the required standards for the peripherals. If you wish to set the frequency beyond the proper specifications, please do so according to your hardware specifications including the CPU, graphics card, memory, hard drive, etc.

HT functionality requirement content :

Enabling the functionality of Hyper-Threading Technology for your computer system requires all of the following platform components:

-CPU: An Intel® Pentium 4 Processor with HT Technology

-Chipset: An Intel® Chipset that supports HT Technology

-BIOS: A BIOS that supports HT Technology and has it enabled

-OS: An operation system that has optimizations for HT Technology

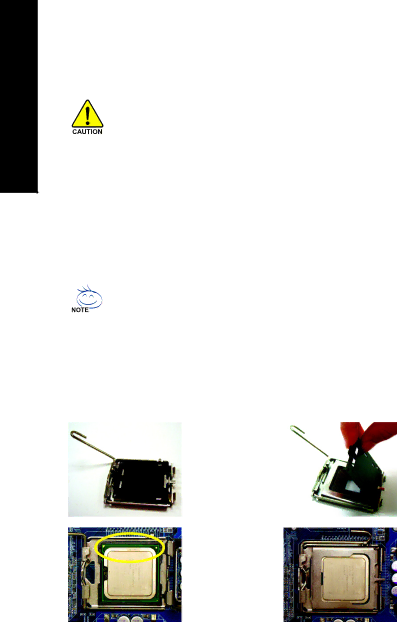

1-3-1 Installation of the CPU





Metal Lever

Fig. 1



Fig. 2





Gently lift the metal

Remove the plastic













lever located on the

covering on the CPU







CPU socket to the



socket.







upright position.











Fig. 3



Fig. 4







Notice the small gold

Once the CPU is







colored triangle

lo-

properly inserted,







cated on the edge of

please replace the







t h e C P U s o c k e t .

load plate and







Align the indented cor-

push the metal lever







ner of the CPU with

back into its original

the triangle and gently insert the CPU into position.

position.

(Grasping the CPU firmly between your thumb



and forefinger, carefully place it into the socket in a



straight and downwards motion. Avoid twisting or



bending motions that might cause damage to the



CPU during installation.)

















GA-8I915MK-GV Motherboard

- 12 -
