Unlocking the Scan Unit
The scan unit is locked during transport to protect the scanning mechanism from being damaged. Be sure to unlock the scan unit before using the
machine.

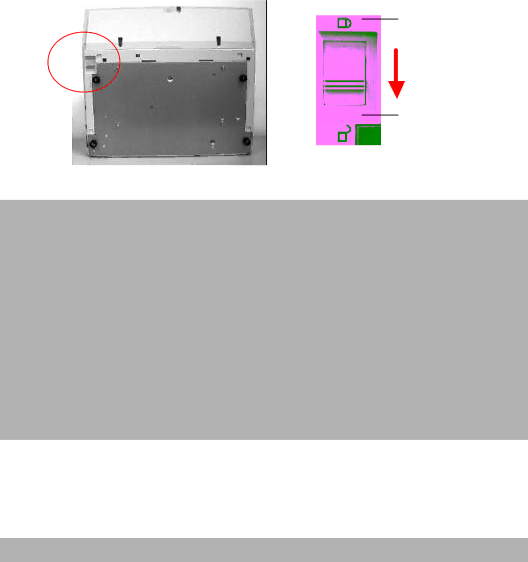

1). Locate the lock switch underneath the machine.
2). Move the lock switch to the "unlocked position".
“Locked Position”
“Unlocked Position”
Note:
If you need to move your IMAGE SCANNER IS100e for repair or any other reason, be sure to lock your IMAGE SCANNER IS100e before moving. To lock your IMAGE SCANNER IS100e, please do the following,
1.Turn off your IMAGE SCANNER IS100e.
2.If the scanning head is not located at the front of the glass, turn IMAGE SCANNER IS100e on to return the scanning head to the front of the glass. After the scanning head is returned to the home position, turn the power supply off.
3.Move the lock switch to the “Locked Position”.
