Note If the spine module
–8 data bits
–no parity bits
–1 stop bit
–56K baud
–Use VT100 emulation.
–Flow control = XON/XOFF

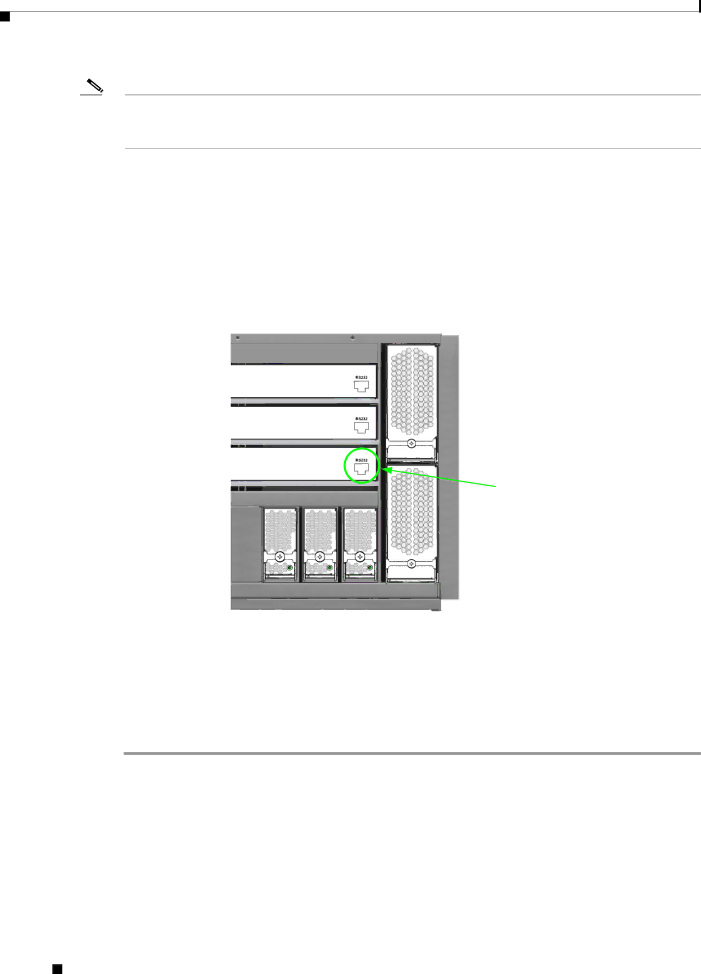

Figure 2-14 SFS 7012 RS-232 Connector
(Unmanaged) |
| Fan | |
|
|
| |
2 (Managed) |
| 3 | |
|
| ||
1 (Managed) |
| Spine Module | |
|
|
| |
|
|
| |
PS | PS | PS | Fan |
1 | |||
3 | 2 | 1 |
|
Step 3 Verify the IP address with the command line interface (CLI) command showChassisIpAddr command. The system returns the information similar to the following:
Chassis IP Address: 192.168.100.9 Net mask: 0xffffff00
Changing the SFS 7012 IP Address and Default Gateway via the CLI
The CLI can be accessed via Telnet, SSH, or through the SFS 7012 RS232 serial ports.
Step 1 Connect
–8 data bits
–no parity bits
–1 stop bit
–56K baud
–Use VT100 emulation.
–Flow control = XON/XOFF
