Bridge Multicast Address  Identifies the Multicast group MAC address/IP address.

Bridge IP Multicast  Displays the port that can be added to a Multicast service.

Interface, Gigabit, LAG  Lists switch interfaces and LAGs that can be added to a Multicast service. The configuration options are as follows:

Static  Indicates the port is user-defined.

Dynamic  Indicates the port is configured dynamically.

Forbidden  Forbidden ports are not included the Multicast group, even if IGMP snooping designated the port to join a Multicast group.

None  The port is not configured for Multicast service.

Click Add to List to add the configured static multicast address to the table at the bottom of the screen.

Click Show All to display all multicast addresses on all VLANs in the table at the bottom of the screen.

Click Save Settings to save the changes, or Cancel Changes to cancel the changes.

Multicast > Bridge Multicast Forward All

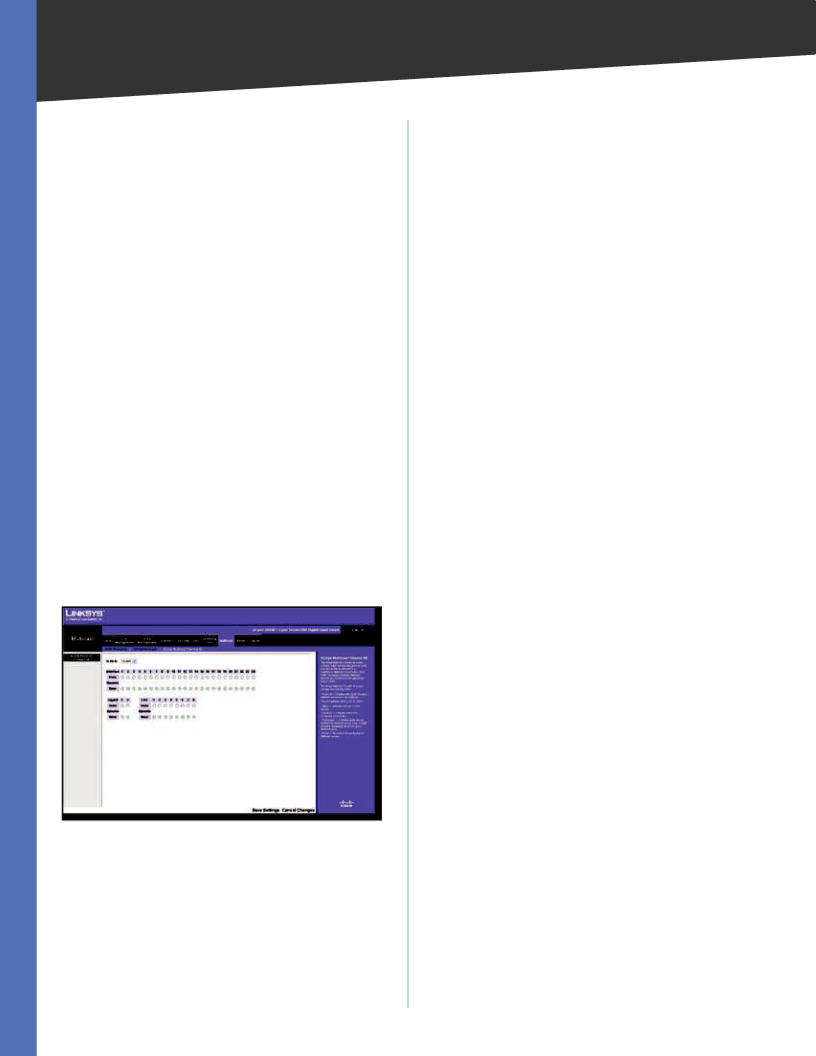

The Bridge Multicast Forward All screen contains fields for attaching ports or LAGs to a device that is attached to a neighboring Multicast router or switch.

Multicast > Bridge Multicast Forward All

Once IGMP Snooping is enabled, Multicast packets are forwarded to the appropriate port or VLAN.

The Bridge Multicast Forward All screen contains the following fields:

VLAN ID  Displays the VLAN for which Multicast parameters are displayed.

Interface  Interfaces with the following configuration options:

Static  The port is user-defined.

Dynamic  The port is configured dynamically.

None  The port is not configured for Multicast service.

Gigabit  Gigabit ports with the following configuration options:

Static  The Gigabit port is user-defined.

Dynamic  The Gigabit port is configured dynamically.

None  The Gigabit port is not configured for Multicast service.

LAG  LAGs with the following configuration options:

Static  The LAG is user-defined.

Dynamic  The LAG is configured dynamically.

None  The LAG is not configured for Multicast service.

Click Save Settings to save the changes, or Cancel Changes to cancel the changes.
