Cypress CY7C63513C manual Ordering Information, Ordering Code, Package Package Type Operating Size

Page 28

CY7C63413C

CY7C63513C

CY7C63613C

TPERIOD

Differential Data Lines

Crossover

Point

Diff. Data to

SE0 Skew

N* TPERIOD + TDEOP

Crossover Point

Extended

Source EOP Width: TEOPT

Receiver EOP Width: TEOPR1, TEOPR2

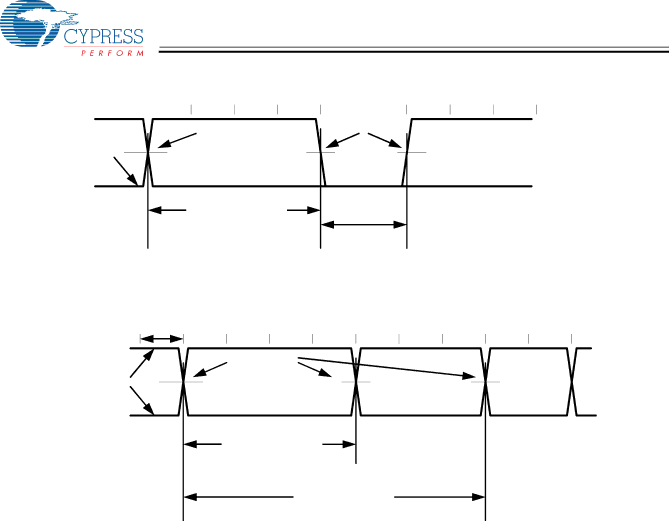

Figure 11. Differential to EOP Transition Skew and EOP Width

TPERIOD



Differential

Crossover

Points

Data Lines



Consecutive

Transitions

N* TPERIOD + TxJR1

Paired

Transitions

N* TPERIOD + TxJR2

Figure 12. Differential Data Jitter

Ordering Information

Ordering Code

EPROM

Package

Package Type

Operating

Size

Name

Range











CY7C63413C-PVXC

8 KB

SP48

48-Lead Shrunk Small Outline Package

Commercial











CY7C63413C-PVXCT

8 KB

SP48

48-Lead SSOP Lead-Free Tape-reel

Commercial











CY7C63413C-PXC

8 KB

P2

40-pin (600 mil) PDIP Lead-Free

Commercial











CY7C63513C-PVXC

8 KB

SP48

48-Lead SSOP Lead-Free

Commercial











CY7C63613C-SXC

8 KB

SZ24.3

24-lead (300 mil) SOIC Lead-Free

Commercial











CY7C63413C-XC

8KB

-

Die Lead-Free

Commercial











Document #: 38-08027 Rev. *B

Page 28 of 32

[+] Feedback

Page 27 Page 29
Image 28
Page 27 Page 29
