Page 12

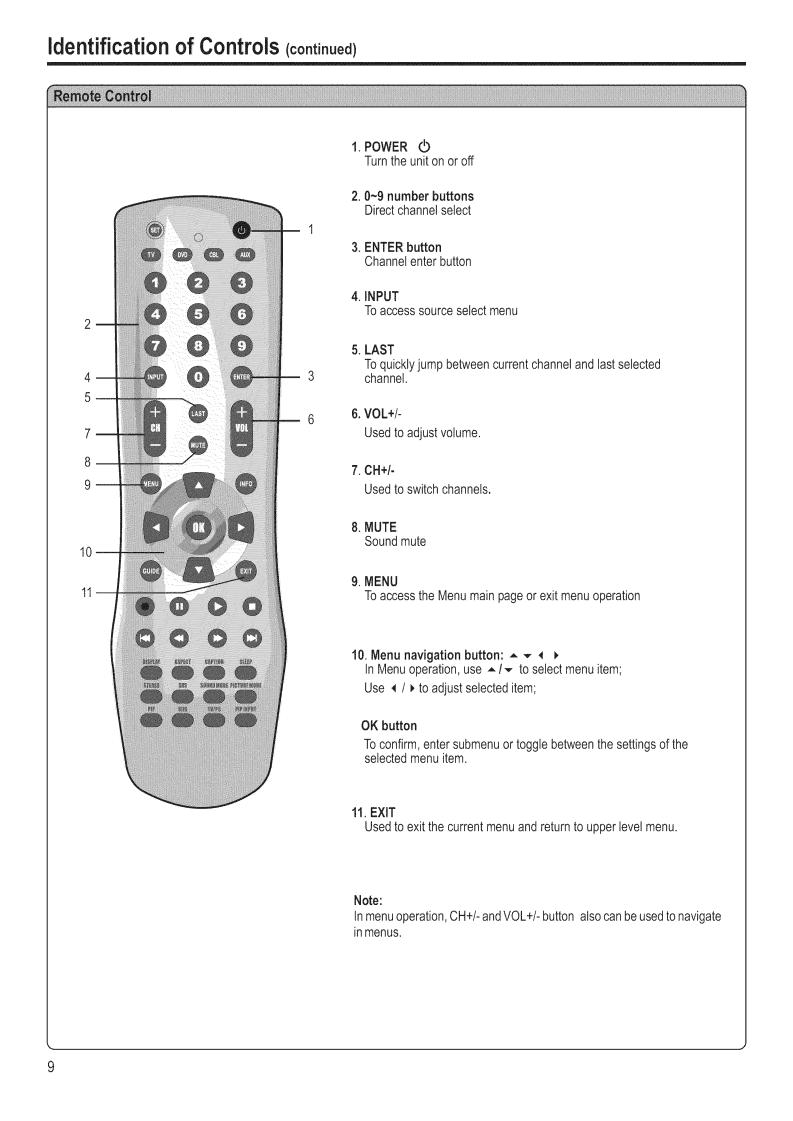

identificationof Controls(coot o d)

4

5

7

8

9--

11

1.POWER (D

Turn the unit on or off

2.0-9 number buttons Directchannel select

3.ENTERbutton Channelenter button

4.INPUT

To accesssourceselect menu

5.LAST

To quicklyjump betweencurrentchanneland last selected channel.

. VOL+/-

Usedto adjustvolume.

7.CH+/-

Usedto switch channels.

8.MUTE Soundmute

9.MENU

To accessthe Menu main pageor exit menu operation

10.Menu navigation button: = T _ _,

In Menu operation,use =/,,,- to select menu item;

Use 4 / _ to adjustselected item;

OK button

To confirm,enter submenuor toggle betweenthe settings of the selected menu item.

11. EXIT

Usedto exit the currentmenu and returnto upperlevel menu.

Note:

Inmenuoperation,CH+/- andVOL+/-button also canbe usedto navigate in menus.

9
