Cannon 10 STX TS, 5 ST Boom END Pulley, Telescopic Boom, Fixed Length Boom Magnum 5 models only

Page 10

Installation

BOOM END PULLEY

Telescopic Boom

1)Remove boom end assembly from hardware bag.

2)Remove #8 self tapping screw from hardware bag.

3)Insert boom end post into end of the small tube of the telescopic boom assembly. (Figure 9)

4)Align hole in boom post with hole in small end tube. (Figure 10)

5)Secure boom end with #8 screw as shown. Tighten with Phillips head screw driver. (Figure 12)

Fixed Length Boom (Magnum 5 models only)

1)Remove boom end assembly from hardware bag.

2)Remove boom adapter and #8 self tapping screw from bag assembly.

3)Insert boom adapter into end of boom. (Figure 11)

4)Align boom adapter hole with hole in boom.

5)Insert boom end assembly into adapter and line up all three holes (boom post, adapter, and boom).

6)Secure boom end with #8 screw as shown. Tighten with Phillips head screw driver. (Figure 12)

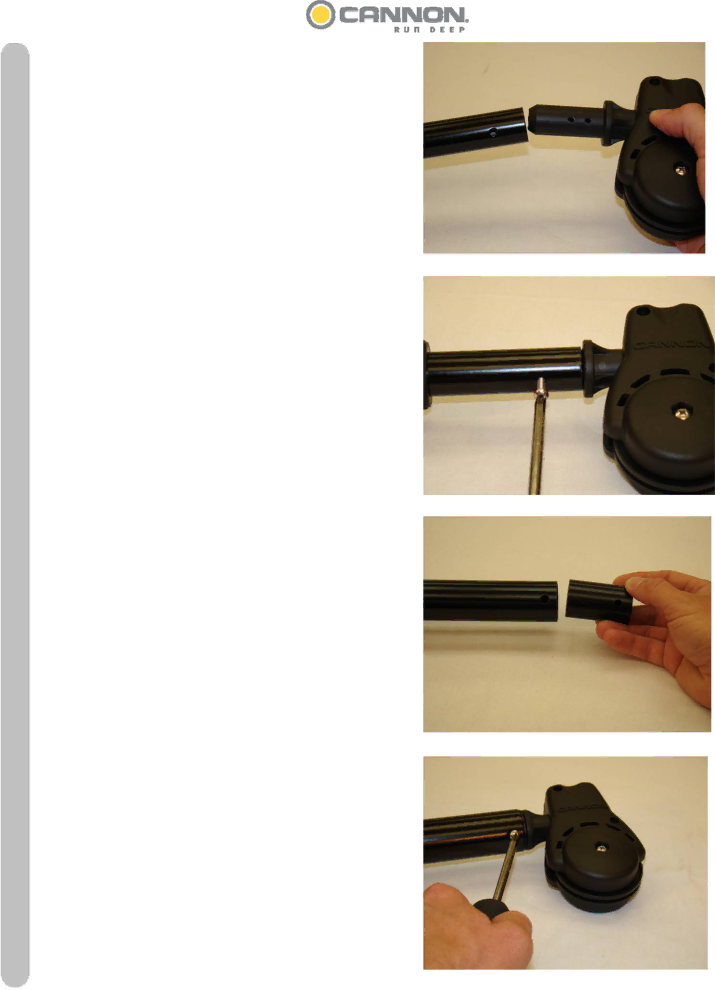

FIGURE 9

FIGURE 10

FIGURE 11

10

FIGURE 12
