Thermador PRG366, PRG304 PRG364GL, PRG486GD Using the Grill, Exploded Views and Side View of Grill

Page 21

PRG Professional Ranges Care and Use

Section Four: Using the Cooktop

USING THE GRILL

CAUTION:

•Use extreme care when placing the grill components into the grill compartment. Avoid contacting the ceramic igniter which could break preventing operation of the grill.

•The grill must be assembled as shown. The drip tray heat shields must be in place, and the burner must be properly positioned relative to the gas supply. Incorrect assembly of the grill may result in unsafe or hazardous conditions during operation.

•Do not leave the grill unattended while in use.

•Do not use charcoal briquettes or coals of any kind.

After removing all packaging materials, check to be certain that the grill components are correctly as- sembled in the grill box.The grill grates, stainless steel radiant and the burner are assembled in the grill box from the factory. Follow the steps below to assemble the components in the grill box.

A.Disassemble and/or remove the grill grate, stain- less steel Radiant and burner from the grill box.

B.Install the aluminum rectangular drip pan inside the grill box as shown below.

C.Install the heat deflector in the U Section of the burner. Make sure that the heat deflector is slop- ing toward the rear of the grill box.

D.Insert the burner venturi to the orifice located at the front center of the grill box.The holes at the opposite burner ends must be seated on the studs at the rear of the grill box. Then locate the heat deflector between the studs on sides of the the grill can.

E.The stainless steel radiant lies on two (2) studs on each end of the grill can.

F.Place the grill grate, with raised food containment rail oriented towards the grill box rear.

Grill

Grate

Stainless

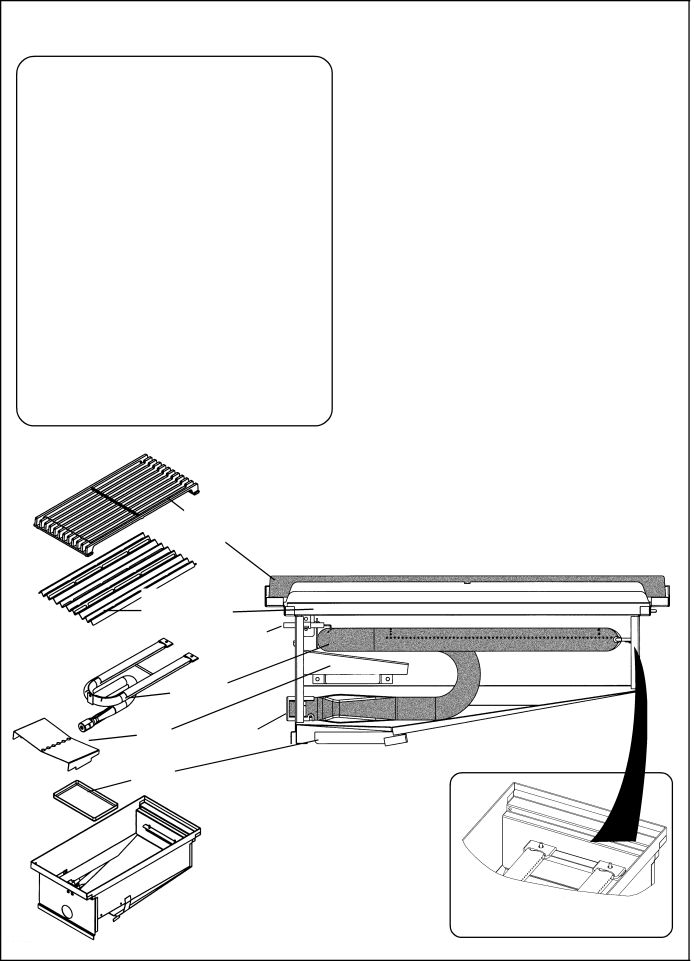

Exploded Views and Side View of Grill

Steel Radiant

Spark igniter

Double U-shaped burner

Heat Venturi

Deflector

Drip Pan

Grill

Burner Placement on Supports

Box



Page 19

Page 20 Page 22
Image 21
Page 20 Page 22
