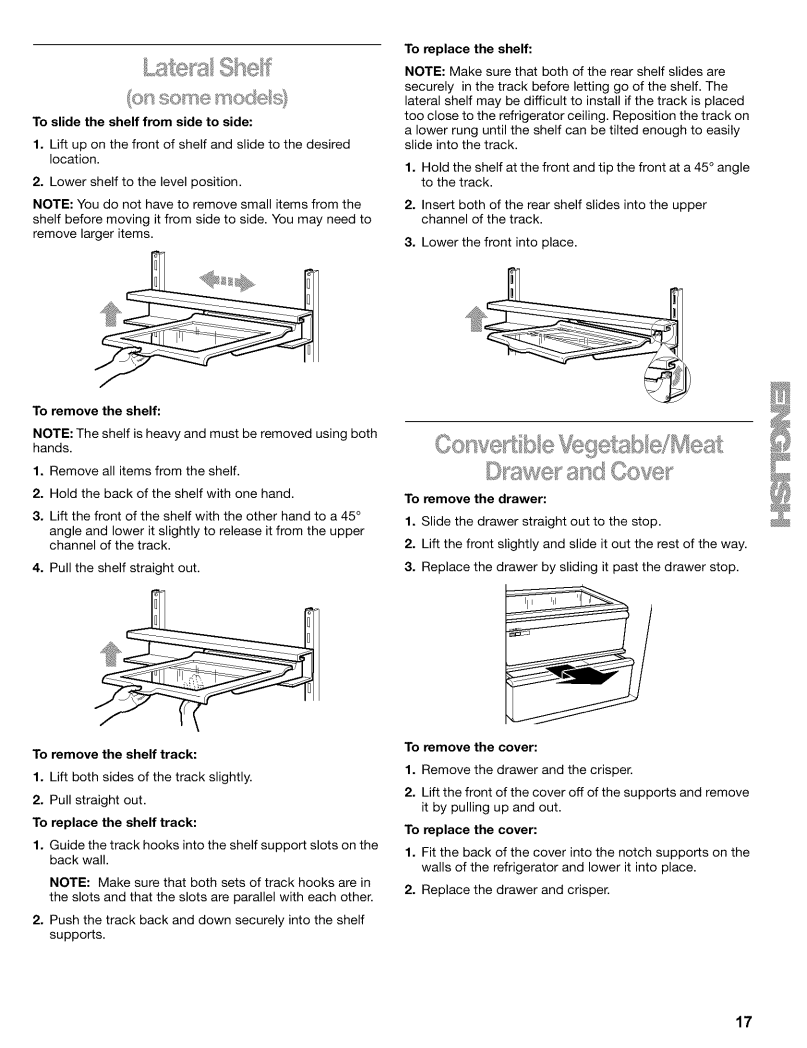

Page 17

Lste s

To slide the shelf from side to side:

1.Lift up on the front of shelf and slide to the desired location.

2.Lower shelf to the level position.

NOTE: You do not have to remove small items from the

shelf before moving it from side to side. You may need to remove larger items.

To remove the shelf:

NOTE: The shelf is heavy and must be removed using both hands.

1.Remove all items from the shelf.

2.Hold the back of the shelf with one hand.

3.Lift the front of the shelf with the other hand to a 45 °

angle and lower it slightly to release it from the upper channel of the track.

4.Pull the shelf straight out.

To replace the shelf:

NOTE: Make sure that both of the rear shelf slides are

securely in the track before letting go of the shelf. The lateral shelf may be difficult to install if the track is placed too close to the refrigerator ceiling. Reposition the track on

a lower rung until the shelf can be tilted enough to easily slide into the track.

1.Hold the shelf at the front and tip the front at a 45 ° angle to the track.

2.Insert both of the rear shelf slides into the upper channel of the track.

3.Lower the front into place.

Dawe O©vel

To remove the drawer:

1.Slide the drawer straight out to the stop.

2.Lift the front slightly and slide it out the rest of the way.

3.Replace the drawer by sliding it past the drawer stop.

To remove the shelf track:

1.Lift both sides of the track slightly.

2.Pull straight out.

To replace the shelf track:

1.Guide the track hooks into the shelf support slots on the back wall.

NOTE: Make sure that both sets of track hooks are in the slots and that the slots are parallel with each other.

2.Push the track back and down securely into the shelf supports.

To remove the cover:

1.Remove the drawer and the crisper.

2.Lift the front of the cover off of the supports and remove it by pulling up and out.

To replace the cover:

1.Fit the back of the cover into the notch supports on the walls of the refrigerator and lower it into place.

2.Replace the drawer and crisper.

17
