Page 41

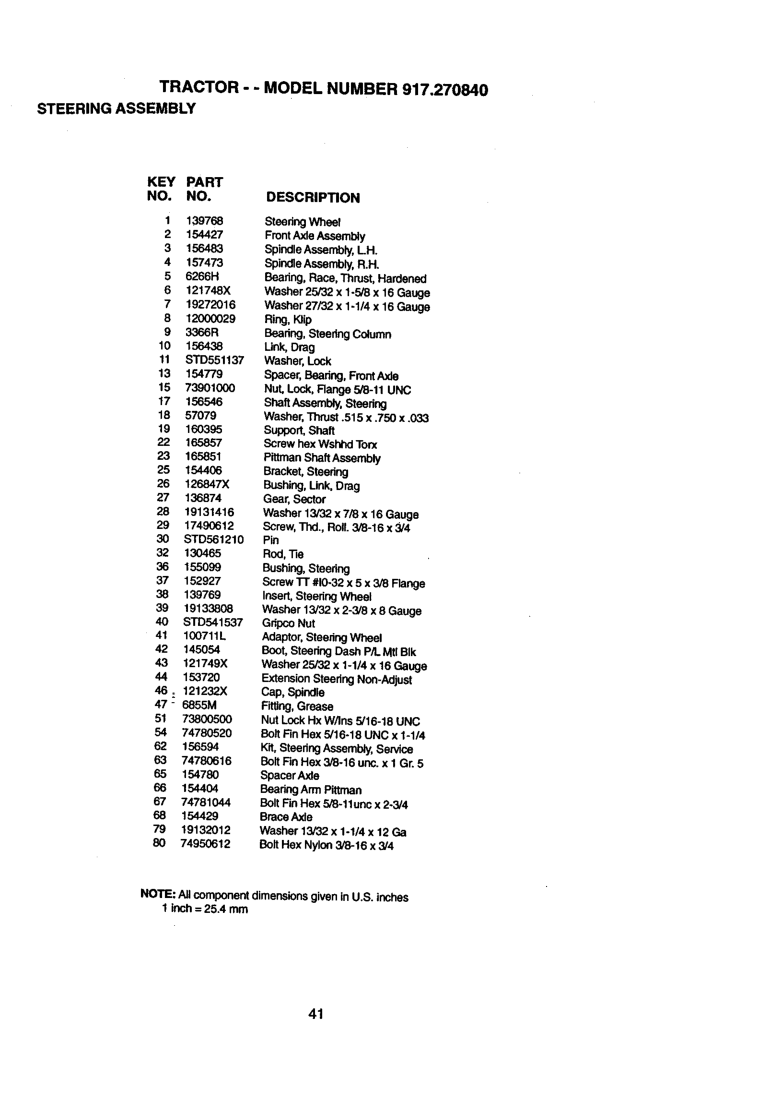

TRACTOR - - MODEL NUMBER 917.270840

STEERING ASSEMBLY

KEY

PART



NO.

NO.

DESCRIPTION

1

139768

Steering Wheel

2

154427

FrontAxle Assembly

3

156483

Sp'_ndLeAssembly,LH.

4

157473

Spindle Assembly,R.H.

5

6266H

Bearing, Race, Thrust, Hardened

6121748X Washer 25/32 x 1-5/8 x 16 Gauge

7 19272016 Washer 27/32 x 1-1/4 x 16 Gauge

8 12000029 Ring, Klip

9 3366RBearing,Steering Column

10

156438

t__k, Omg

11

STD551137

Washer, Lock

13

154779

Spacer, Bearing, Front A,,de

15

73901000

NuL Lock, Range 5/8-11 UNC

17

156546

Shaft Assembly,Steering

18

57079

Washer, Thrust .515 x .750 x .033

19

160395

Support, Shaft

22165857 Screw hex Wshhd Torx

23165851 PlttmanShaft Assembly

25

154406

Bracket, Steenng

26

126847X

Bushing,Link, Drag

27

136874

Gear, Sector

2819131416 Washer 13/32 x 7/8 x 16 Gauge

2917490612 Screw, Thd., Roll.3/8-16 x 3/4

30STD561210 Pin

32

130465

Rod, "Re

36

155O99

Bush'_g,Steering

37152927 Screw 1-1"#10-32x 5 x 3/8 Flange

38 139769 insert, SteeringWheel

39 19133808 Washer 13/32 x 2-3/8 x 8 Gauge

40 STD541537 GripcoNut

41 100711L Adaptor,Steering Wheel

42 145054 Boot, Steedng Dash P/L Mtl BIk

43 121749X Washer 25/32 x 1-1/4 x 16 Gauge

44

153720

ExtensionSteedng Non-Adjust

46 :

121232X

Cap, Spk_e

47-

6855M

Fitting,Grease

51

73800500

Nut LockHx W/Ins 5/16-18 UNC

54

74780520

Bolt Fin Hex 5/16-18 UNC x 1-1/4

62

156594

Kit, SteeringAssembly,Service

63

74780616

BoltFin Hex 3/8-16 unc. x 1 Gr. 5

65

154780

Spacer Axle

66

154404

BearingArm Pittman

67

74781044

BoltRn Hex 5/8-11unc x 2o3/4

68

154429

BraceA)de

79

19132012

Washer 13/32 x 1-1/4 x 12 Ga

80

74950612

Bolt Hex Nylon3/8-16 x 3/4

NOTE: Allcomponent dimensionsgiven in U.S. inches 1 inch= 25A mm

41
