INSTALLATION INSTRUCTIONS

ELECTRICAL INSTALLATION (continued):

CAUTION: Before use of the pump and heater, test the GFCI for proper operation. The pump and heater should turn off when the GFCI "Test" button is pushed.

Warning - Prolonged Immersions in Hotter Water May Induce Hyperthermia.

Hyperthermia occurs when the internal temperature of the body reaches a level several degrees above the normal body temperature of 98.6o F. The symptoms of hyperthermia include an increase in the internal temperature of the body, dizziness, lethargy, drowsiness, and fainting. The effects of hyperthermia include (1) failure to perceive heat, (2) failure to recognize the need to exit the whirlpool, (3) unawareness of impending hazard, (4) fetal damage in pregnant women, (5) physical inability to exit the whirlpool, (6) unconsciousness resulting in the danger of drowning.

WARNING - The use of alcohol, drugs, or medication can greatly increase the risk of fatal hyperthermia.

CHROMATHERAPY LED LIGHTING:

All Infinity models now come equipped with a digital color-changing underwater light for soothing chromatherapy. To compliment your bathing experience, the Aquatic electronic control panel allows you to select a color according to the desired effects.

To Turn Your Chromatherapy Lighting System ON: Press the Light Button once to turn the Chromatherapy Light ON in Color Wash mode. A second press of the button will turn the lighting system OFF. Subsequent presses will move the lighting system through the seven constant color modes.

1st Press

9th Press



Color Wash: Random color blend



Blue: Peace

2nd Press

10th Press



Off



Off

3rd Press

11th Press



White: clarity



Yellow: Hope

4th Press

12th Press



Off



Off

5th Press

13th Press



Aqua: Calm



Green: Harmony

6th Press

14th Press



Off



Off

7th Press

15th Press



Violet: Inspiration



Red: Courage

8th Press

Off

5A

To replace bulb:

1.Disconnect the power to your bathtub.

2.Drain the bathtub.

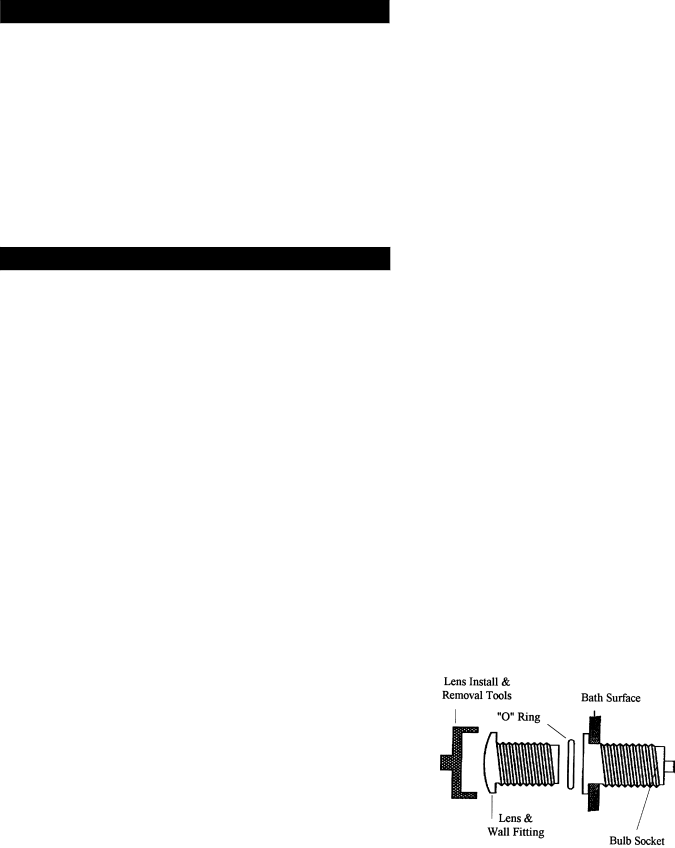

3.Open the lens of the fixture using ONLY the proper tool provided for that purpose (see Diagram 5A). Do not attempt to remove the lens without the provided tool.

4.Replace your LED light (replacement LED lights can be obtained from Aquatic Industries).

5.Verify “O” ring is not damaged and is properly positioned in the groove when replacing the lens. If there is damage or lens does not seal properly, do not refill bathtub.

NOTE: Do not twist LED light into socket. Use gentle pressure and push LED light into place.

AQUATIC INDUSTRIES, INC.

15
