Removing the VGA/MXM Card
NOTE: The following procedure outlines the removal steps for models supporting VGA Cards. The procedure for MXM Cards requires the removal of two screws, though the remaining steps are identical.
1.See “Removing the Mainboard” on page 95.

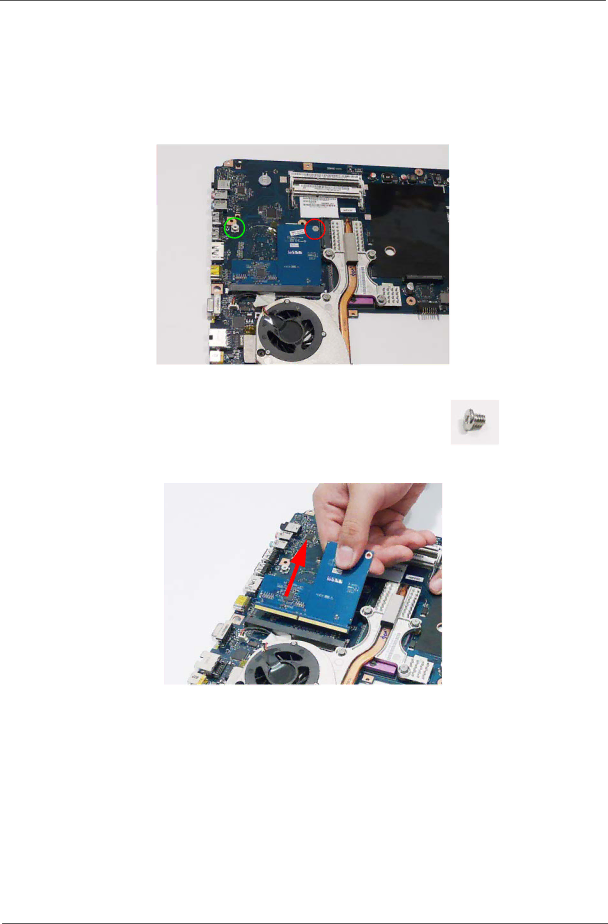

2.Remove the single screw securing the VGA Card to the Mainboard.
NOTE: MXM cards are secured with and additional screw as indicated by the green callout.
Step |
| Size | Quantity | Screw Type |
|
|
|
|
|
VGA/MXM | M2.5*3 |
| 1 or 2 |
|
|
|
|
|
|
3.Remove the VGA Card from the Mainboard connector.
