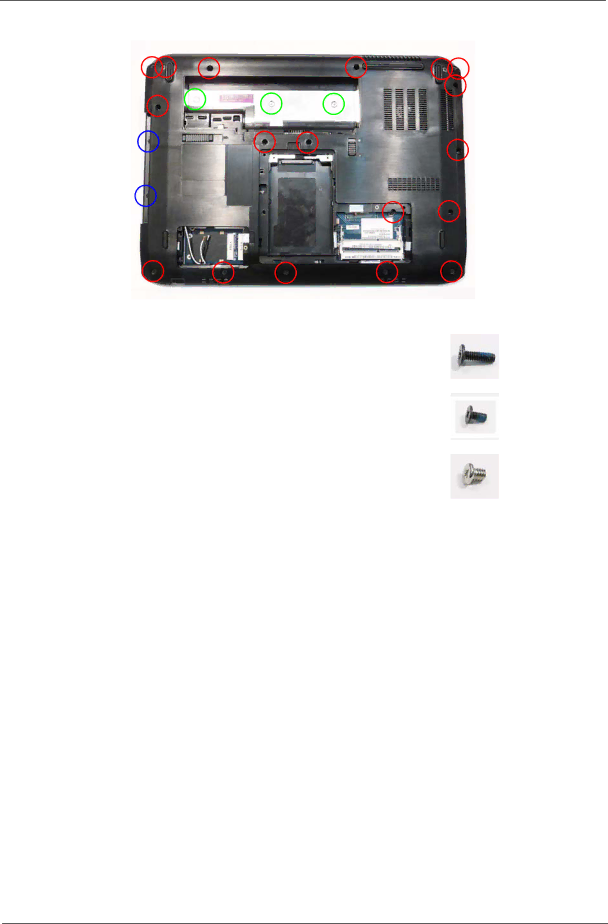

7.Turn the computer over. Insert the twenty-three screws on the bottom panel.

Step

Size

Quantity

Screw Type









Upper Cover

M2.5*8

18



(red callout)















Upper Cover

M2.5*5

2



(blue callout)















Upper Cover

M2.5*3

3



(green callout)
