| Screen Configuration |
|
|
|
|
Field Name | Explanation |
|
|
|
|
Contrast | Set screen contrast |
|
|
|
|
Enable Backlight | Enable/disable LCD backlight. |
|
|
| |
| Line Key Settings/Function Key Settings | |
|
|
|
Field Name | Explanation |
|
|
|
|
Key | Key Name |
|
|
| |
Type | Select the type of function the key is to perform. Choices are: | |
| ∙ None |
|
| ∙ BLF List Key – If the SIP server supports this function, the key | |
| can monitor the status of a group of phones. | |
| ∙ DTMF – Send DTMF during a call |
|
| ∙ Key Event – Many different functions. See Section 4.9.3 for a | |
| list. |
|
| ∙ Line – Seize a programmed line (SIP1/SIP2/IAX2) | |
| ∙ Memory Key – See Section 4.9.1. |
|
| ∙ URL – Directly access a remote XML phonebook | |
|
|
|
Value | Parameters associated with the function. | For example: The digits to |
| be dialed by a key programmed for DTMF. | |
|
| |
Line | Line on which the function is to be performed. | |
|
|
|
Subtype | Used with Key Event and Memory Key. | Further specifies the type |
| of function to perform. |
|
|
| |
Pickup Number | Used with devices which support RFC 5359 Call Pickup | |
|
|
|

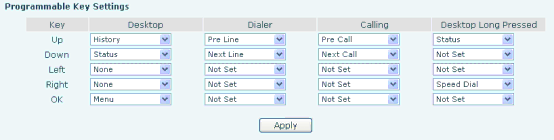

| Programmable Key Settings |
|
|
|
|
Key | Choose key to be programmed |
|
|
|
|
Desktop | Choose function in idle mode |
|
|
|
|
Dialer | Choose function while dialing |
|
|
|
|
Calling | Choose function during a call |
|
|
|
|
Desktop Long Pressed | Choose function when key is held down |
|
|
|
|
63
