Wireless Sniffer Board

Dell™ XPS™ M1530 Service Manual

Removing the Wireless Sniffer Board

Replacing the Wireless Sniffer Board

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.

NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as the back panel) on the computer.

NOTICE: Handle components and cards by their edges, and avoid touching pins and contacts.

Removing the Wireless Sniffer Board

1.Follow the instructions in Before You Begin.

2.Remove any installed ExpressCards from the ExpressCard slot.

3.Remove the palm rest (see Removing the Palm Rest).

4.Remove the ExpressCard reader (see Removing the ExpressCard Reader).

5.Disconnect the wireless sniffer board cable from the system board.

6.Remove the two M2 x 3-mm screws from each side of the sniffer board and remove it from the computer base.

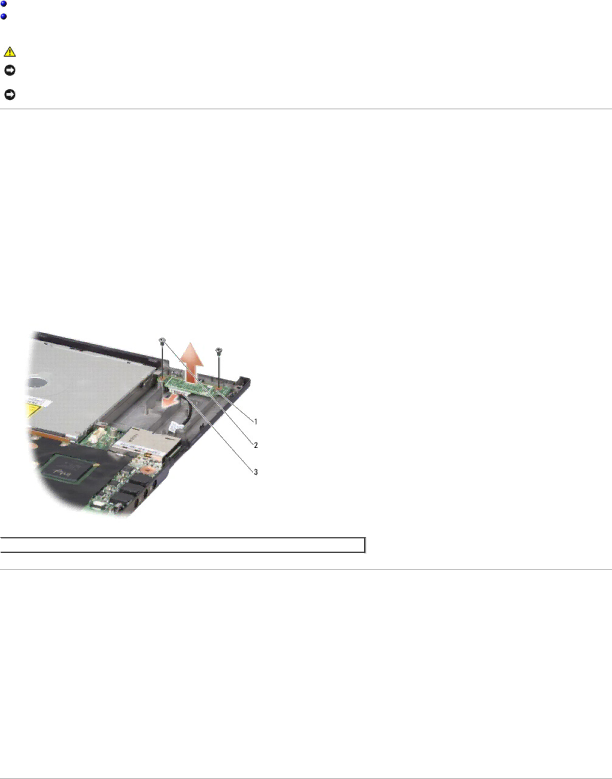

1 wireless sniffer board 2 M2 x3-mm screw (2) 3 wireless sniffer board cable connector

Replacing the Wireless Sniffer Board

1.Replace the sniffer board.

2.Replace the two M2 x 3-mm screws on each side of the sniffer board.

3.Reconnect the wireless sniffer board cable to the system board.

4.Replace the ExpressCard reader (see Replacing the ExpressCard Reader).

5.Replace the palm rest (see Replacing the Palm Rest).

6.Reinstall the ExpressCards in the ExpressCard slot, if any.
