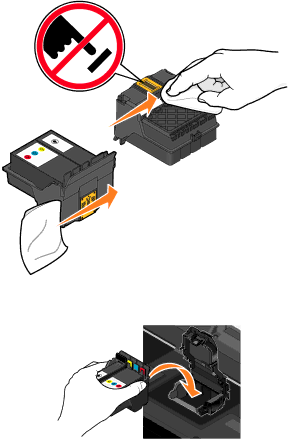

3Wipe the printhead contacts using a clean, li nt-free cloth.

4Reinsert the printhead, and then close the latch until it clicks.

5Close the printer.

Note: If removing and reinserting the printhead does not resolve the error, then contact technical support.

Software did not install

If you encountered problems wh ile installing, or if your printer does not appear in the list in the Printers folder or as

a printer option when send ing a print job, then try r emoving and reinstalling the software.

Before you reinstall the software, do the following:

MAKE SURE THAT YOUR COMPUTER MEETS THE MINIMUM SYSTEM REQUIREMENTS LISTED ON

THE PRINTER BOX

TEMPORARILY DISABLE SECURITY PROGRAMS IN WINDOWS BEFORE INSTALLING THE SOFTWARE

CHECK THE USB CONNECTION

1Check the USB cable for any obvious damage. If the cable is damaged, then use a new one.

2Firmly plug the square end of the USB cable into the back of the printer.

Troubleshooting
