Removal and Replacement Procedures

6.20 Speaker

Speaker Spare Part Number Information

Speaker

378237-001





1.Prepare the notebook for disassembly (Section 6.3), and then remove the following components:

a.Memory module/Mini PCI compartment cover (Section 6.7)

b.Optical drive (Section 6.9)

c.Keyboard (Section 6.10)

d.Switch cover (Section 6.11)

e.Display assembly (Section 6.18)

f.Top cover (Section 6.19)

2.Disconnect the speaker cable from the system board.

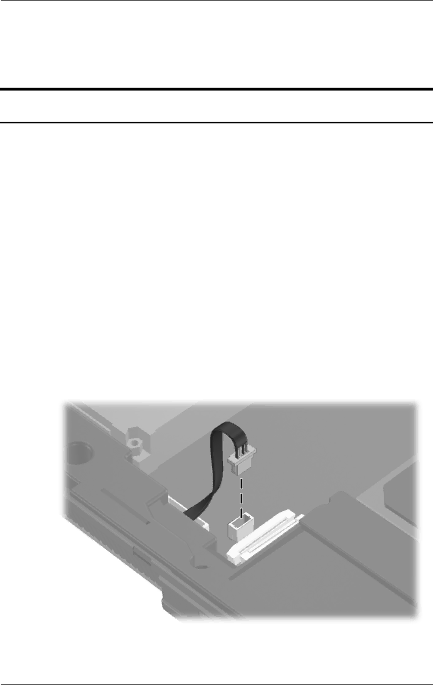

Disconnecting the Speaker Cable
