Flash shooting in Advanced Wireless Lighting

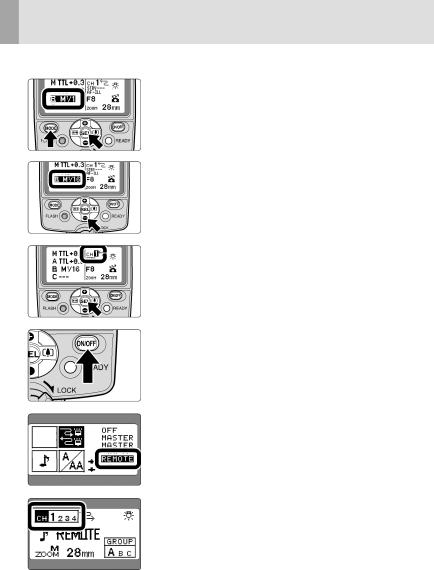

7 Press the g button on the master flash unit to highlight “B”, then press the a button to set the flash mode to G on the remote flash unit B.

8 Likewise, press the f button on the master flash unit to set the flash output level to 1/16 on the remote flash unit B.

9 Press the g button on the master flash unit to highlight the channel number, then press the e or f button to set the channel number to 1.

10 Set up remote flash units A and B. Turn the power on, then confirm that the ready-lights

come on.

•Use a tripod or the Speedlight Stand AS-19 for placement of the remote flash units (p. 75).

11 Set the remote flash units A and B to REMOTE.

12 Set the channel number of the remote flash units A and B to 1.

•Be sure to choose the same channel number as set on the master flash unit.

82
