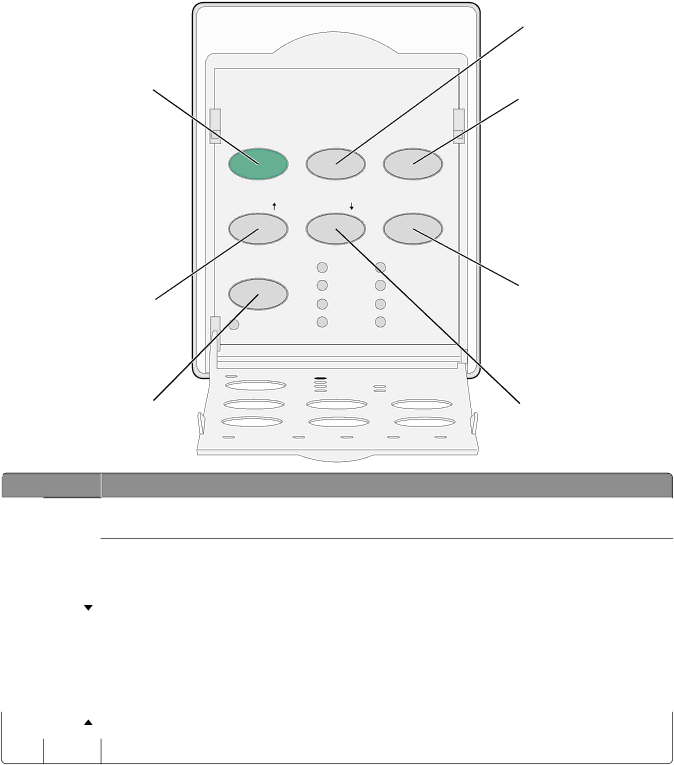

Using the control panel

17

7

1 2 3 4 Power

Set TOF

LineFeed

Macro

1

2

6

Micro

Micro

Pitch

10





12



15

Lock

17



Setup

20

24

P5

3

5

4



Button Function

1LineFeed Advances the paper one line. Press and hold LineFeed to advance the paper 5 micro movements, and then go into continuous feed.

2

Macro

To support different styles of preprinted forms, selects between four document formats

3

Setup

Press to enter Setup mode. Lets you change the default values and modes of printer operation.











4

Micro





Feeds the paper downward in small incremental movements. Press and hold to select continuous feed.









5

Pitch

Sets the character pitch to: 10 cpi, 12 cpi, 15 cpi, 17 cpi, 20 cpi, or proportional spacing









Notes:









On 2590/2591 models, you can also select 24 cpi.









Fast Draft supports only 10, 12, and 15 pitch.











6

Micro





Feeds the paper upward in small incremental movements. Press and hold to select continuous feed.









7

Set TOF

Sets the TopOfForm, which is the position of the first print line on the page

Understanding the control panel lights

The following tables describe the light patterns on the control panel.
