Model 2616RC | 3 • Configuring the | |
|
|
|
|
|
|
|
|
|

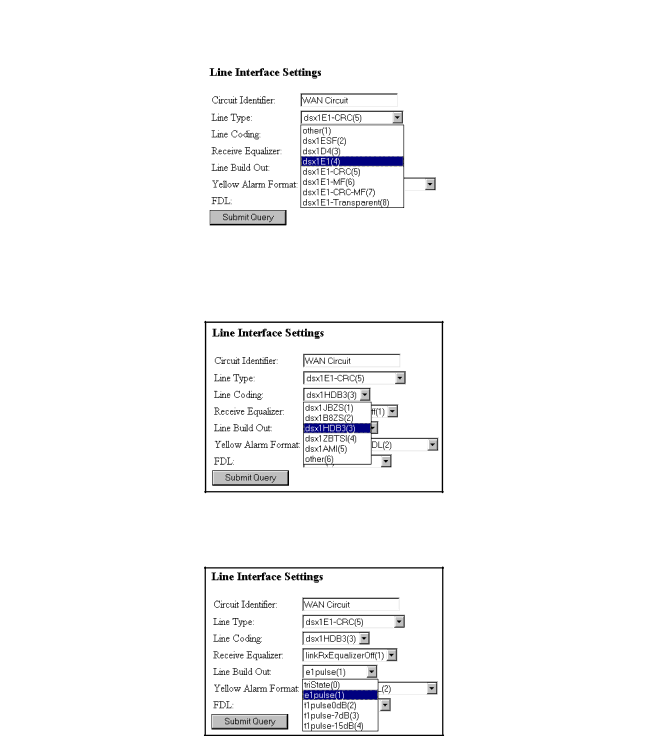

Figure 38. Line Type pull-down menu
2.From the Line Coding
Figure 39. Line Coding pull-down menu with dsx1HDB3(3) selected
3.From the Line Build Out pull-down menu (figure 40) select e1pulse(1).
Figure 40. Line Build Out pull-down menu with e1pulse(1) selected
4.Click the Submit Query button to apply your line interface settings.
At this point the T1/E1 front panel LEDs will become active. The T1/E1 indicator LEDs should now display a steady green light, indicating the
Using a browser to complete Model 2616RC configuration | 48 |
