Connection
When connecting a signal source to the projector, be sure to:
1.Turn all equipment off before making any connections.
2.Use the correct signal cables for each source.
3.Ensure the cables are firmly inserted.
• In the connections shown below, some cables may not be included with the projector (see "Shipping contents" on page 8). They are commercially available from electronics stores.
•For detailed connection methods, see pages
2 3
1 2
4 5
1

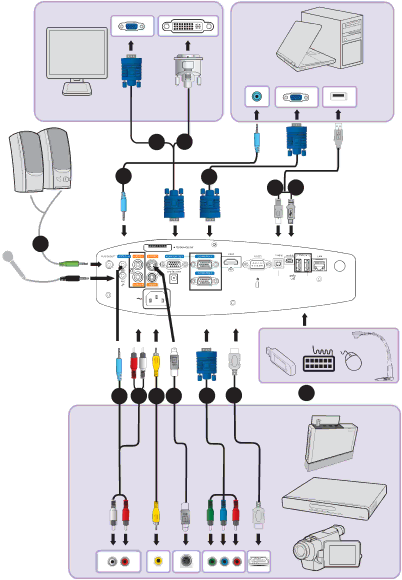

1 | 1 | 6 | 7 | 8 | 9 | 10 |
1. | Audio cable | 6. Video cable |
|
|
|
2. | VGA cable | 7. |
|
|
|
3. | VGA to | 8. Component Video to VGA (DSub) adapter |
|
| cable |
|
|
|
4. | USB B type to A type cable | 9. HDMI cable |
|
|
|
5. | USB | 10. USB flash drive/HDD/wireless dongle/ |
|
| keyboard/mouse/document camera |
|
|
|
Connection 21
