	HotBrick Network Solutions
Settings – SNMP

System	• Contact Person – The name of the person responsible for this device.
Information	• Device name – The name of VPN 800/2 Firewall Router.
	• Device name – The name of VPN 800/2 Firewall Router.
	• Physical Location – The location of the VPN 800/2 Firewall Router.

Community	It is a relationship between a SNMP agent and a set of SNMP manager that
	defines authentication, access control, and proxy characteristics.
Trap Targets	Enter the IP address of any targets (PCs running SNMP software) to which you
	want traps to be sent. All traps are level 1.

Email Alert

This feature will send a warning Email, inform system administrator that one of the WAN ports was disconnected.

Email Alert – You can choose to enable or disable it to send a warning email. Email Sender Address – It is an email address which will send the warning email.

Email (SMTP) Server Address – It is an email server address the warning email will be sent to. Email Recipient Address – It is an email address of system administrator the email will be sent to.

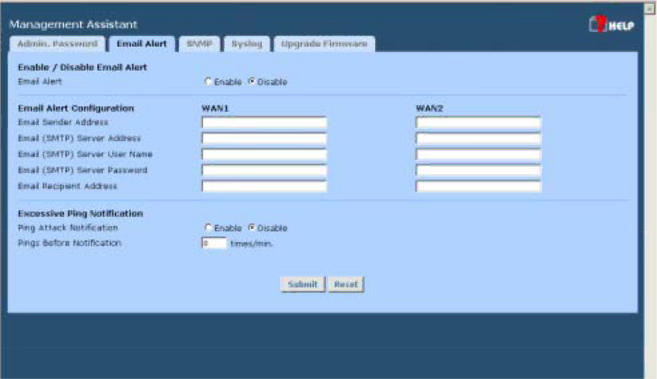

Figure 8-2: Email Alert

Page 62

Image 67
