Britax Diplomat manual Installation Forward Facing

Page 20

Installation: Forward Facing







LATCH Installation







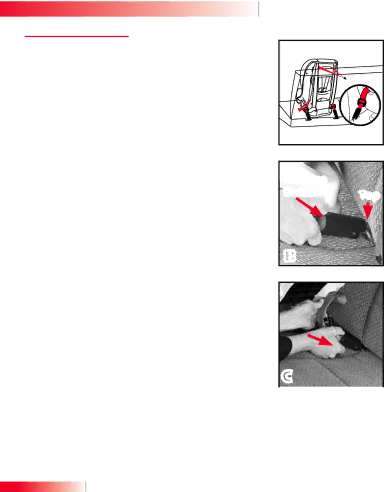

• Figure A illustrates a typical forward-facing LATCH installation.





• Verify that your vehicle is equipped with LATCH anchors. If





LATCH anchors are not available, you must use vehicle belt





installation methods.







NOTE: LATCH connectors must be in an upright position (as





shown in figure B) and strap should be tight and not twisted





to ensure proper installation.



A



1� If stored, remove LATCH connectors from storage slots



under cover (see page 28).







2� Press and hold first LATCH adjuster button, then pull





LATCH strap to full length. Repeat for remaining LATCH

Release



connector.



Button

Top

3� Place restraint sideways on vehicle seat, with back

of

restraint facing toward you.







• Restraint can be used in recline position when installed in





forward-facing mode with children up to 40 pounds (18 kg.).





• Britax recommends use of Versa-Tether®to improve

B



installation. If using Versa-Tether®(see pages 23-26), locate



tether on rear of restraint and place up and over seat back





while securing restraint.







4� Verify LATCH strap is not twisted, then attach closest LATCH connector to vehicle seat back to farthest LATCH anchor from you (fig. C).

NOTE: It may be necessary to switch LATCH harness as shown on page 27 if ANY of the following conditions exist:

LATCH connector is not in an upright position as





shown in figure B.

C

• LATCH strap is twisted.

A positive click is NOT heard when LATCH connector



and LATCH anchor are connected.

NOTE: If a positive click is not heard, but LATCH connector is in an upright position, you should not switch LATCH harness. The strap may be too tight or twisted, or

there may be debris in LATCH connector. If a positive connection cannot be made, do not use LATCH installation; install using vehicle belt method.

18
