CAUTION: Violation of these requirements may result in unsafe operation and/or equipment failure. Damage to the inverter as a result of improper installation voids the warranty.

The DC power source must be a well-regulated DC power supply as typically found in vehicle and deep-cycle marine batteries. The DC power source may also be two 12 volt batteries connected in parallel. On larger applications the power source may be several batteries connected in parallel as shown in the following “Permanent Battery Configuration” diagram.

For more information about attaching and using the Remote Control, please refer to the Remote Control User’s Manual.

TROUBLESHOOTING

Common Audio/Visual Problems

Problem	Solution
“Buzzing” sound in audio	Some inexpensive stereo systems and “boom boxes” emit a buzzing sound from

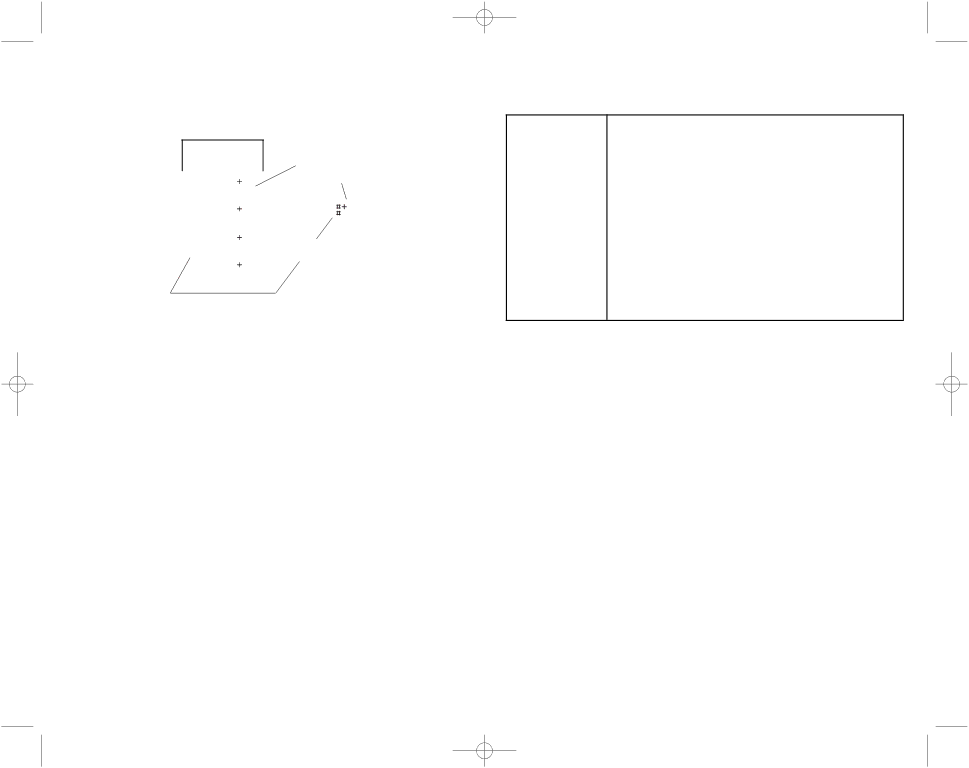

Permanent Battery

Configuration Diagram

	BATTERY CHARGING			FUSE TO BATTERY LENGTH
				+ FUSE TO INVERTER LENGTH
	FROM COMMERCIAL
AC, ENGINE, SOLAR, ETC.					(MAX FEET OF
					AWG WIRE)
				(See the “Specifications” section)
		BATTERY	FUSE HOLDER
				ANL FUSE
							MAXX SST™
							POWER
		BATTERY
							INVERTER
					(MAX FEET	OF
		BATTERY
					AWG WIRE)
			(See the “Specifications” section)
		BATTERY

systems	their speakers when operated from the Power Inverter. This occurs because the
	power supply in the electronic device does not adequately filter the modified sine
	wave produced by the inverter. The only solution to this problem is to use a higher
	quality sound system that incorporates a higher quality power amplified supply.
Television Interference	The Inverter is shielded to minimize interference with TV signals. However, in
	some instances, some interference may still be visible, particularly with weak TV
	signals. Try the following corrective measures:
	• Position the inverter as far as possible from the television, the antenna and the
	antenna cables. Use an extension cable, if necessary.
	• Adjust the orientation of the inverter, the antenna cables and the TV power cord
	to minimize interference.
	• Make sure the antenna feeding the television provides an adequate (“snow free”)
	signal and that high quality, shielded antenna cable is used.
	• Do not use the inverter to operate high-power appliances or tools at the same
	time you are using it to operate the TV.

Note: For typical heavy-duty uses in a Permanent Installation, an ANL fuse must be added as close as possible to the power source (battery) positive terminal. The fuse amperage size must be appropriate to allow simultaneous operation of all the AC appliances to be powered, with delay characteristics that allow for the momentary high start-up current requirements of inductive loads. Use the specified fuse block (fuse holder) and fuse. For full rated output and motor start-up surge output, ensure that the installation is configured to handle the full load. See the “Permanent Installation” section of this Instruction Manual.

Connection To Load

The Power Inverter is equipped with standard North American three-prong type outlets. Plug the cord from the equipment you wish to operate into the AC outlet(s). Make sure the combined load requirement of your equipment does not exceed maximum continuous power.

The Power Inverter is engineered to be connected directly to standard electrical and electronic equipment in the manner described above. Do not connect the Power Inverter to household or RV AC distribution wiring. Do not connect the Power Inverter to any AC load circuit in which the neutral conductor is connected to ground (earth) or to the negative of the DC (battery) source.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, PROPERTY DAMAGE OR PERSONAL INJURY: NEVER connect unit directly to AC distribution wiring.

Operating Tips

For best operating results, the inverter should be placed on a stable, flat surface. The inverter should only be used in locations that meet the following criteria:

DRY — Do not allow water or other liquids to come into contact with the inverter.

COOL — Surrounding air temperature should be between –0°C and 40°C — ideally between 15°C and 25°C (60- 80°F). Keep the inverter away from direct sunlight, when possible.

WELL-VENTILATED — Keep the area surrounding the inverter clear to ensure free air circulation around the unit. Do not place items on or over the inverter during operation. The unit will shut down if the internal temperature gets too hot.

SAFE — Do not use the inverter near flammable materials or in any locations that may accumulate flammable fumes or gases. This is an electrical appliance that can briefly spark when electrical connections are made or broken.

Notes on Using the Remote Control (sold separately)

For ease of use, Vector offers (as a separate item) a Remote Control specifically designed for this line of MAXX SST inverters. The inverter ON/OFF Switch must be in the OFF position when connecting the Remote Control to the unit or the Remote Control will not operate. Once the unit has been turned ON using the Remote Control, inverter operation will continue to be controlled through the Remote Control. Turn the inverter OFF before disconnecting the Remote Control.

• Make sure the inverter’s case is properly grounded (refer to the “Permanent

Installation Procedure” section of this Instruction Manual).

Fault Protection and Troubleshooting Guide

INVERTER POWER SWITCH TURNED ON

Trouble/Indication	Possible Cause	Suggested Remedy
No AC output —	DC input is below 10 volts	Recharge or replace battery.
red LED lit
	Excessive appliance load —	Turn unit OFF. Reduce the load, wait for the inverter
	thermal shutdown	to cool down, then turn the unit ON again.
No AC output —	Fuse(s) open	Check DC input — fuse(s) in vehicle. Replace the
green LED not lit		fuse with one of the same type and rating if
		necessary.
Low battery alarm sounds	Low battery voltage	Recharge battery. Remove load from the inverter
continuously		while recharging battery.
	Bad connection or wiring	Tighten all DC connections.
Motorized power tool will	Excessive start-up load	If appliance does not start, appliance is drawing
not start		excessive voltage and will not work with inverter.
Motorized power tool does	Purely inductive load	Make the load not purely inductive. Operate an
not operate at correct speed		incandescent lamp at the same time as motor.
Television/radio interference	Snow in picture, “buzzing”	Keep inverter and antenna distant from each other.
	sound	Use shielded antenna. Connect antenna to
		amplifier.

Resetting the Unit

When a thermal shutdown problem occurs, the inverter will reset and turn back on automatically after it cools.

WARNING: To reduce the risk of injury or property damage: If the appliance stops working, even momentarily, turn off the appliance and disconnect from the inverter until the cause is identified and corrected.
